Digitally Tuned Oscillators (DTO) Selection Guide
Application Notes for Microwave Sources
DTO General

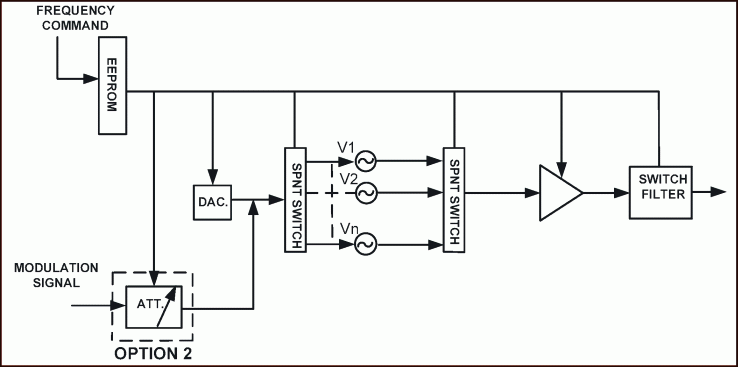

Kratos General Microwave offers a line of DTOs covering the 2-18 GHz frequency range based upon its catalog line of broadband VCOs. The DTO provides the desired output frequency in response to a digital control signal. A block diagram of the DTO is shown in the following Block Diagram. By appropriate design of the electronic circuitry, settling times of less than 300 nanoseconds are achieved. To obtain a frequency accuracy of the order of ±1%, including the effects of temperature, a proportionally controlled heater is required for the VCO and the electronic circuitry is temperature-compensated. A latch mode is provided as a standard feature.
DTO Selection Table
| FREQUENCY RANGE (GHz) |
MODEL |
SPEC |
 |
| Digitally Controlled OSCILLATOR (DTO) |
 |
D6010C |
 |
 |
D6020C |
 |
D6026C |
 |
D6040C |
 |
D6080C |
 |
D6120C |
 |
D6052 |
|
 |
D6206 |
 |
D6618 |
 |
D6218 |
 |
DC6206
DC6618 |
|
 |
 |
CUSTOM DTOs |
|
