Microwave Oscillators: Multi-Band DTO: Series D60

Application Notes for Microwave Oscillators
Simulator and Other Test Systems Applications To obtain broadband frequency coverage, as well as to improve settling speed, two or more VCOs are combined, as shown in Fig. 1. A high-isolation RF switch is required to suppress all but the desired VCO. A switched lowpass filter is included in the output to reduce harmonic levels. The harmonic level for catalog units is specified at -20 dBc. However, -55 dBc suppression is available as an option. Kratos General Microwave offers multi-band DTOs covering the 0.5-2, 2-6, 6-18 and 2-18 GHz frequency ranges. The units feature high speed, high accuracy and low phase noise. The specifications are summarized on page 190. The modular design of the DTOs enables the user to select narrower frequency coverage if desired. Please consult the factory for individual requirements. For military applications, these DTOs require option G09 to comply with Military Standards. The specific environmental MIL STD requirements as well as the EMI/RFI specifications should be provided by the customer. Model D6618 VCO AssemblyModel D6618 VCO Assembly
Multi-band DTO Model D6052
Multi-band DTO block diagram

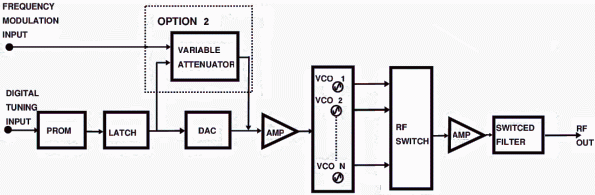

Fig. 1–Multi-Band DTO Block Diagram
Multi-band DTO 2-18 GHz
Multi-band DTO Amplifier Assembly
D6052 RF Assembly Multi-band DTO

MULTI-BAND DTO SPECIFICATIONS

  MODEL
PARAMETER D6052 D6206 D6618 D6218

FREQUENCY RANGE (GHz)

0.5-2 2-6 6-18 2-18

ACCURACY @ +25°C, max (MHz)

 ±2

FREQUENCY DRIFT, max (MHz/°C)

 ±0.1

FREQUENCY SETTLING(1), (MHz) within 1 μsec

 ±2 ±3 (6-12 GHz)
±4 (12-18 GHz)		 ±2 (2-6 GHz)
±3 (6-12 GHz)
±4 (12-18 GHz)

MODULATION(2)
   Bandwidth, min (MHz)

 DC to 10
   Sensitivity variation
     Standard unit, typ		 4:1
   Option 2 unit, max 1.1:1
   Frequency deviation   bandwidth, min @ 2v P-P (MHz) 100 500

RF POWER

output, min (dBm)


 +10
   Variation, incl. temp. & freq. max (dB) ±2 ±2.5

PHASE NOISE, typ (dBc/Hz)
@ 100 kHz offset

 -65
RESIDUAL FM, P-P @ -3 dBc, typ (kHz) 50 75 150

HARMONICS, max (dBc)
   Standard Unit

 -20
   Option 3 Unit N/A -55 -55
   f/2, 3f/2, max (dBc) N/A -55

SPURIOUS, max (dBc)

 -60

PULLING VWSR 2:1 max (MHz)

 ±1

PUSHING, max (kHz/V)

 ±125 ±250 ±500

NOMINAL LSB(3) (MHz)

 0.5

MONOTONICTY

 Guaranteed

CONNECTORS POWER
Power

 9 pin, D type male4
Control 37 pin, D type male4
RF output SMA female
Modulation Input SMC male

POWER SUPPLY REQEUIRMENT (mA)
                                                      +15V ±0.5V

 450

 700

 1,000

 1,250
                                                       -15V ±0.5V

 250

 250

 300

 300
                                                        +5V ±0.5V

 150

 150

 500

 500
                                                        +28V ±2V

 1,000

 1,000

 3,000

 3,000
  Turn-On Current @ 28 volts 3 amps max 6 amps max

ENVIRONMENTAL
   Operating temperature (°C)

 0 to +70
   Storage temperature (°C) -20 to +100

MECHANICAL DIMENSIONS
   Inches

 5.70 x 4.80 x 2.50 6.48 x 6.23 x 2.00
   Millimeters 144,8 x 121,9 x 63,5 164,6 x 158,2 x 50,8

(1) Δf relative to f after 1 sec
(2) 50 Ohm input impedance
(3) 16 Bit TTL input, including VCO control. See pages 191 and 192.
(4) Mating connector furnished






AVAILABLE OPTIONS
Option No.  Description
2  Reduced Modulation Sensitivity Variation
3  Improved Harmonic Suppression
4  SMA Female Modulation Connector
B09  13 to 20 GHz Operation
B11  Operating Temp. range -5 (°C) to +70 (°C)
B12  With options 2 & 3. Operating Temp. range -10 (°C) to +70 (°C)

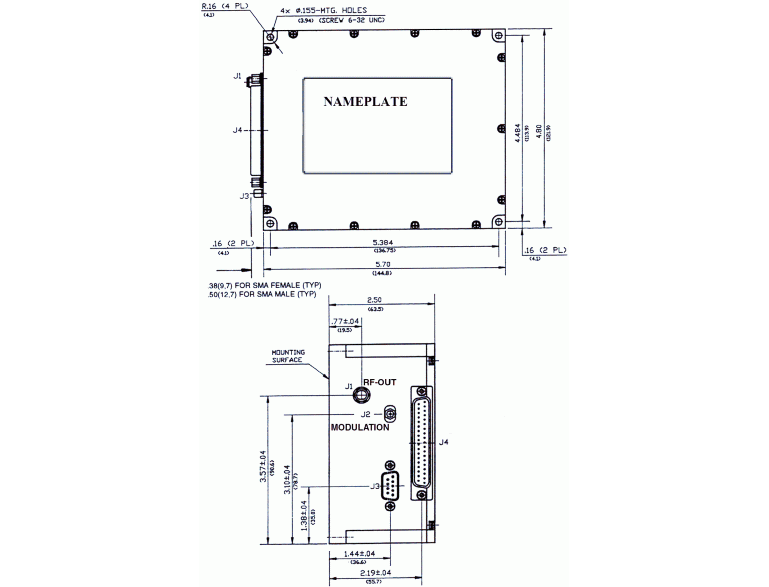

 DIMENSIONS AND WEIGHTS - Model D6052


Multi-band DTO dimensions and weights for Model D6052



MODELS D6052 Power Connector (J3)
PIN NO. FUNCTION PIN NO. FUNCTION
1 +5V 6 Return for: +5V, +15V, -15V
2 -15V 7 Return for: +5V, +15V, -15V
3 +15V 8 +28V (return)
4 +28V (return 9 +28V
5 +28V

NOTES: For Normal Operation of the DTO
1) PIN nos. 9, 10 and 28 should be connected together.
2) PIN no. 11 should be grounded
3) PIN nos. 12, 13, 14, 15, 16, 17, 19, 30, 31, 32, 33, 34, 35 and 36 are for FACTORY PROGRAMMING ONLY and should not be connected.
MODELS D6052
Control Connector (J4)
PIN NO. FUNCTION
1 A13 Tuning Word (MSB)
2 A11 Tuning Word
3 A9 Tuning Word
4 A7 Tuning Word
5 A5 Tuning Word
6 A3 Tuning Word
7 A1 Tuning Word
8 V1 VCO Control (MSB)
9 L1 Latch 1 (Strobe)
10 L3 Latch 3
11 OE Memory Output Enable
12 D1 Data Bus
13 D3 Data Bus
14 D5 Data Bus
15 D7 Data Bus
16 W2 Write 2
17 OET2 Output Enable Transceiver 2
18 G Ground
19 WE Write Enable
20 A12 Tuning Word
21 A10 Tuning Word
22 A8 Tuning Word
23 A6 Tuning Word
24 A4 Tuning Word
25 A2 Tuning Word
26 A0 Tuning Word
27 V0 VCO Control (LSB)
28 L2 Latch 2
29 G Ground
30 D0 Data Bus
31 D2 Data Bus
32 D4 Data Bus
33 D6 Data Bus
34 W1 Write 1
35 OET1 Output Enable Transceiver 1
36 OET3 Output Enable Transceiver 3
37 G Ground
Wt. 2.18 lb. (990 grams) approx.

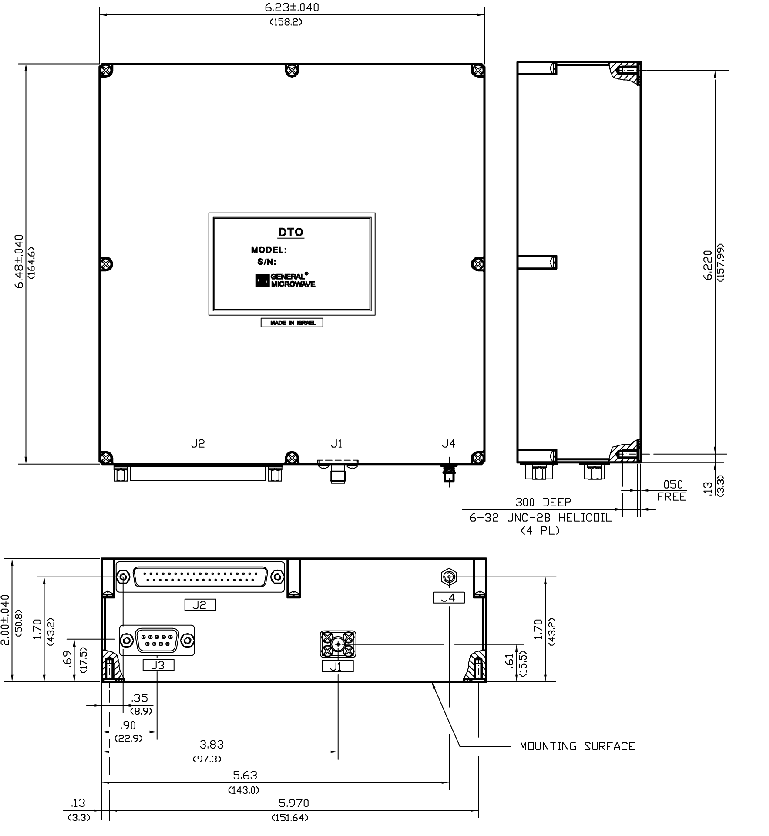

DIMENSIONS AND WEIGHT - MODELS D6206, D6218 and D6618

Dimensions and weights for DTO Models D6206, D6218, D6618

MODELS D6026, D6618 and D6218
Power Connector (J3)
PIN NO. FUNCTION PIN NO. FUNCTION
1 +5V 6 Return (for +5V, +15V, -15V)
2 -15V 7 Return (for +5V, +15V, -15V)
3 +15V 8 +28V (return)
4 +28V (return 9 +28V
5 +28V

NOTES: For Normal Operation of the DTO
1) PIN nos. 9, 10 and 28 should be connected together (Latch enable).
2) PIN no. 11 should be grounded
3) PIN nos. 12, 13, 14, 15, 16, 17, 19, 30, 31, 32, 33, 34, 35 and 36 are for FACTORY PROGRAMMING ONLY and should not be connected.
MODELS D6206, D6618 and D6218
Control Connector (J2)
PIN NO. FUNCTION
1 A14 Tuning Word (MSB)
2 A12 Tuning Word
3 A10 Tuning Word
4 A8 Tuning Word
5 A6 Tuning Word
6 A4 Tuning Word
7 A2 Tuning Word
8 V0 VCO Control Bit
9 L1 Latch 1 of 3 (Strobe)
10 L3 Latch 3 of 3 (Strobe)
11 OE Memory Output Enable
12 D1 Data Bus
13 D3 Data Bus
14 D5 Data Bus
15 D7 Data Bus
16 W2 Write select 2
17 OET2 Output Enable Transceiver 2
18 GND Ground
19 WE Write Enable
20 A13 Tuning Word
21 A11 Tuning Word
22 A9 Tuning Word
23 A7 Tuning Word
24 A5 Tuning Word
25 A3 Tuning Word
26 A1 Tuning Word
27 A0 Tuning Word (LSB)
28 L2 Latch 2 of 3 (Strobe)
29 G Ground
30 D0 Data Bus
31 D2 Data Bus
32 D4 Data Bus
33 D6 Data Bus
34 W1 Write select 1
35 OET1 Output Enable Transceiver 1
36 OET3 Output Enable Transceiver 3
37 GND Ground
Wt. 3.35 lb. (1.52 kg) approx.

Dimensions are stated in inches (mm).  Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008
