MODEL |
| PARAMETER |
DC6206 |
DC6618 |
| FREQUENCY RANGE (GHz) |
2-6 |
6-18 |
| ACCURACY @ +25°C, max (MHz) |
±2 |
| FREQUENCY DRIFT, max (MHz/°C) |
±0.1 |
| FREQUENCY SETTLING within 1 µsec, max (MHz) |
±2 |
±3 |
| MODULATION(1) |
| Bandwidth, min (MHz) |
DC to 15 |
DC to 10 |
| Sensitivity variation, max |
1.1:1 |
| Frequency deviation (MHz/V) max |
±250 @ 5V PTP |
±250 @ 2V PTP |
| RF POWER |
| Output, min (dBm) |
2-8 |
+10 |
| Variation, incl. temp. and frequency, max (dB) |
±2 |
±2.5 |
| PHASE NOISE, max (dBc/Hz) @ 100 kHz offset |
-70 |
-65 |
| RESIDUAL FM, p-p @ -3 dBc, max (KHz) |
200 |
150 |
| HARMONICS, max (dBc) |
-45 |
-55 |
| SUB-HARMONICS, max (dBc) |
-45 |
-55 |
| SPURIOUS, max (dBc) |
-60 |
| PULLING @ VSWR 2:1, max (MHz) |
±2 |
±1 |
| PUSHING, max (MHz/V) |
±2.5 |
±0.5 |
| FREQUENCY STEP per LSB, (MHz) Nominal |
1 |
0.5 |
| MONOTONICTY |
Guaranteed |
| OPERATING TEMPERATURE (°C)(2) |
0 to +70 |
| CONNECTORS |
| Power |
9 Pin MDM Male |
| Control |
37 Pin MDM Male |
| RF output |
SMA female |
| Modulation Input |
SMA female |
| POWER SUPPLY REQUIREMENT (V) |
+15, -15, +5 & +28 |

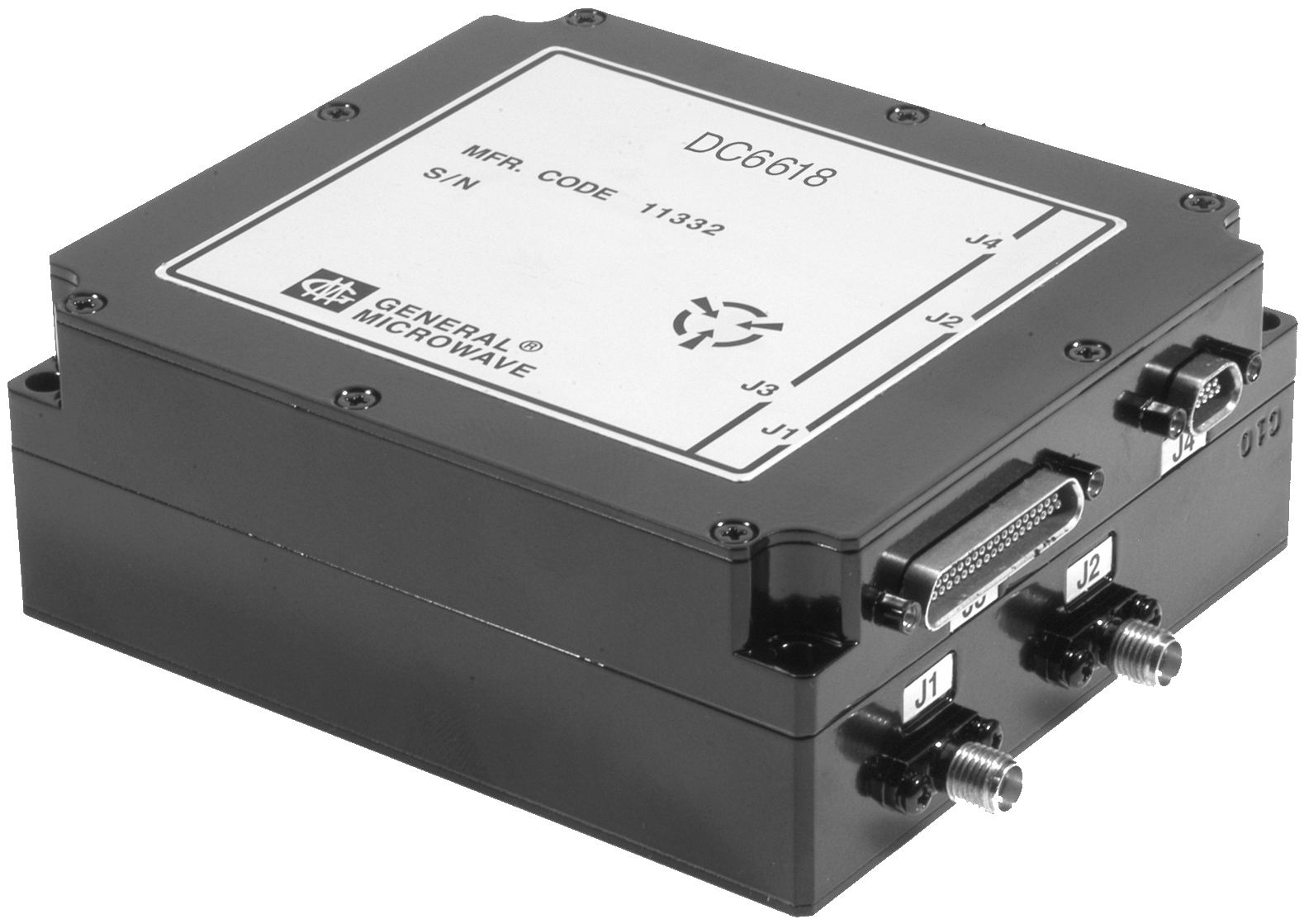

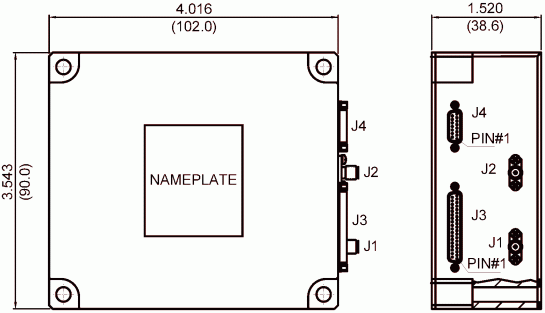

| MECHANICAL DIMENSIONS |
| Inches |
4.0 x 3.5 x 1.5 |
| Millimeters |
102.0 x 90.0 x 38.6 |
