Model AMP-M-2640-35 Millimeter Wave Amplifier
Kratos General Microwave is offering the ANP-M-2640-35 Millimeter Wave broad band amplifier as a General Purpose amplifier for use in laboratories test setups. The maximum output power of this amplifier is 27 dBm.
MAIN BENEFITS
- Broad Frequency
- High Gain
- Flat Gain Response
- Repetitive Unit-to-Unit Gain Curve (option)
MAIN SPECIFICATIONS
|
PARAMETER |
UNITS |
SPECIFICATION |
| 1 |
Frequency Range |
GHz |
26.5 to 40 |
| 2 |
Max. Output Power |
dBm |
27 |
| 3 |
P1dB (Typ.) |
dBm |
26.0 |
| 4 |
Small Signal Gain (Typ) |
dBm |
36 to 41 |
| 5 |
Gain Flatness (Typ) |
dB |
±2 |
| 6 |
Power Supply Requirement |
| 6.1 |
Positive Supply |
V |
6±10% (@4A) |
| 6.2 |
Negative Supply |
V |
-7 to -5 (@0.1A) |
| 7 |
Environment Conditions |
|
Lab. |
| 8 |
Dimensions |
| 8.1 |
|
Inch |
4.2 x 2.8 x 1 |
| 8.2 |
|
mm |
10.67 x 7.11 x 2.54 |

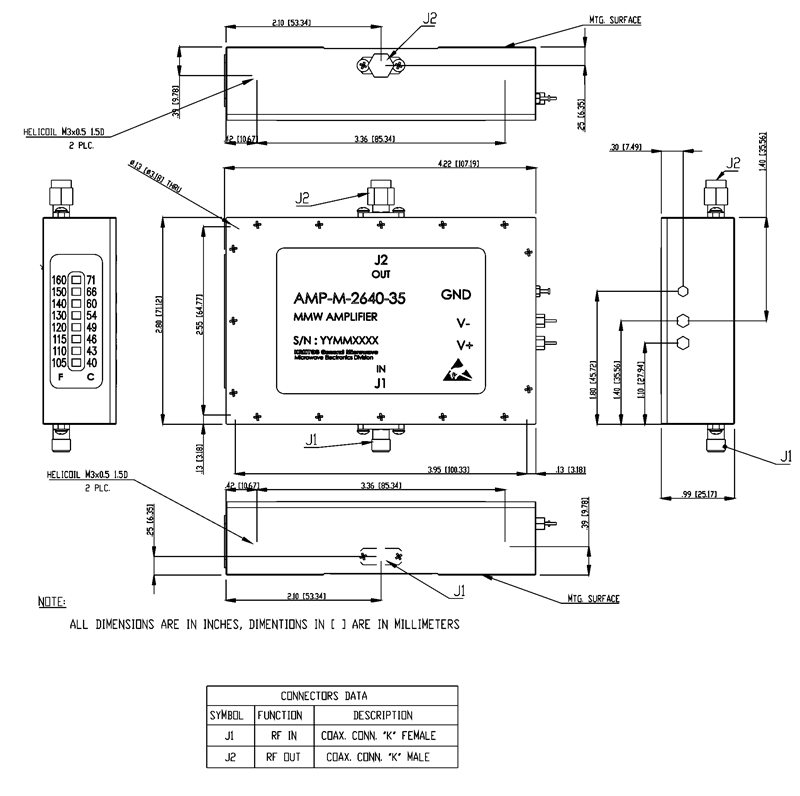

OUTLINE DRAWING
Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008
