F9044 Millimeter Wave SP4T Switch

Application Note

Non-Reflective SP4T SWITCHES

 F9044 SP4T switch use an integrated assembly of PIN diodes mounted in a microstrip transmission line. All models are supplied with integrated drivers. Standard units are supplied with logic that turns a port ON with the application of a logic "0" control signal. Maximum ON/OFF times are less than 50 nsec.
  • 26 to 40 GHz frequency range
  • Non-Reflective
  • Low VSWR and Insertion loss
  • 55 dB isolation
  • Designed for Phase & Amplitude matched
Series 90 Millimeter Wave SP4T Switch  Special Order Product Consult Factory Before Ordering

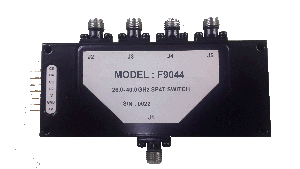

Switch Model F9044 (with integrated driver)

PERFORMANCE CHARACTERISTICS

 Model       Parameter  Specification
  F9044 Frequency Range, (GHz)
26 to 33
33 to 37
37 to 40
 Min. Isolation, (dB)

 55

55

 55
Max. Insertion Loss, (dB)
6.0
6.5
 8.5
Max. VSWR (ON/OFF)
2.5:1
2.5:1
 2.5:1
Switching Speed On/Off...................................... 50 nsec max.
Power Handling Capability
  Without performance degradation
    "ON" and  Common Ports......................... 1W cw or peak
    "OFF" Ports...............................................  100 mW cw or peak
Survival Power
    "ON" and Common Ports.......................... 1W average, 75W peak (1µsec max. pulse width)
    "OFF"  Ports..............................................  200 mW average, 5W peak (1µsec max. pulse width)
 Power Supply Requirements....................... +5V ±5%, 375 mA
.
-12V ±5%, 250 mA
Control CHARACTERISTICS
    Control Input Impedance........................
 TTL, advanced Schottky, one unit load. (A unit load is 0.6 mA sink current and 20 µA source current.)
   Control Logic........................................... Logic "0" (–0.3 to +0.8V) for switch ON and Logic "1" (+2.0 to +5.0V) for switch OFF.






AVAILABE OPTIONS
Option No. Description
G12 RoHS compliant
G16 RoHS & REACH compliant

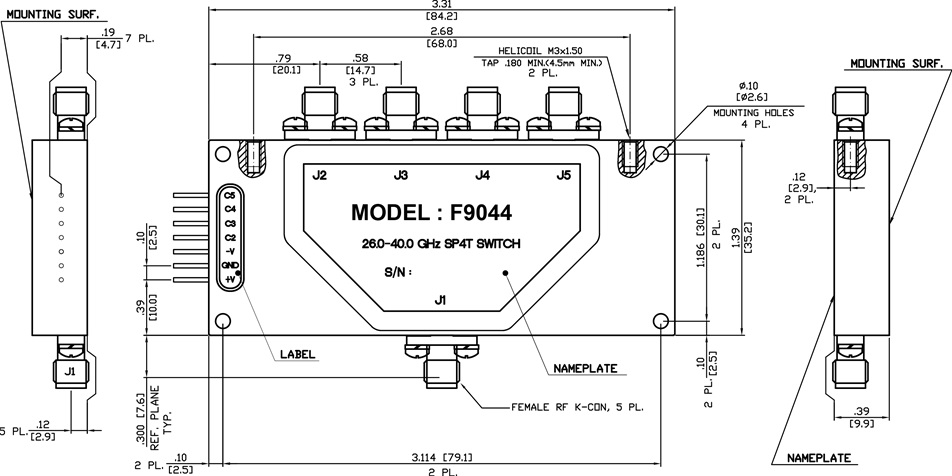

 DIMENSIONS AND WEIGHTS


Weight 2.79 oz. (79 gr.) approx.
Dimensions are stated in inches (mm).  Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008



The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
