Series 91 and 92 Miniature Broadband SP4T Switches

pplication Notes for RF Switches

MODELS 9140-500 and 9240-500

These switches provide high-performance characteristics over a multi-octave frequency range. Model 9140-500 covers the 1 to 18 GHz frequency range while the Model 9240-500 covers the 0.2 to 4 GHz range. Their description and operation are the same as that for the Models 9120-500 and 9220-500 SP2T switches.

MODELS 9140T-500, 9140W-500 and 9240T-500

These switches are Non-reflective versions of the switches described above.

MODELS 9140AH-500 and 9140AHT-500

These switches are the same as the 9120AH-500 and the 9120AHT-500 except for the number of ports.

SERIES F91 and F92

The Series F91 and F92 switches are the same as the corresponding Series 91 and 92 models except the units are equipped with integrated drivers.

SERIES G91 and G92

Operating from +5 and +15V power supplies only, the G-series switches provide high performance characteristics at relatively high speeds over multi-octave frequency ranges. The series includes low Insertion loss and high isolation models in both reflective and non-reflective configurations. Series G91 units cover the frequency range of 1 to 18 GHz; Series G92 units cover the frequency range of 0.2 to 4 GHz. The design is based on an integrated circuit assembly of PIN diodes mounted in a microstrip transmission line as shown below. The currents required to switch the ports ON or OFF are provided by the integrated driver, which is controlled by external TTL logic signals.
  • Frequency range (Series 91):
    1 to 18 GHz
  • Frequency range (Series 92):
    0.2 to 4 GHz
  • Rise and fall times as fast as
    10 nsec
  • Reflective and Non-reflective models
  • Low VSWR and Insertion loss
  • Isolation: up to 60 dB
  • Miniature size, light weight
Miniature Broadband SP4T Switch with Integrated Driver
                F9140AH-33
     (With INTEGRATED Driver)
Miniature Broadband SP4T Switch Driverless Model
              9140AH-500
              (DRIVERLESS)
MODEL NO.(1) CHARACTERISTIC FREQUENCY (GHz)
0.2-1 1-2 2-4 4-8 8-12.4 12.4-18
9140-500
F9140
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 -
-
-		 60
1.4
1.75		 60
1.4
1.75		 60
1.5
1.75		 60
2.0
1.75		 50
2.8
2.0
G9140*
 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 -
-
-		 60
2.0
1.5		 60
2.0
1.5		 60
2.2
1.7		 60
2.7
1.7		 50
3.0
2.0
9240-500*
F9240* 		Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 60
1.5
1.6		 60
1.5
1.6		 60
1.5
1.6		 -
-
-		 -
-
-		 -
-
-
G9240* Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 60
2.0
1.5		 60
2.0
1.5		 60
2.0
1.5		 -
-
-		 -
-
-		 -
-
-
9140T-500*
F9140T*
G9140T*		 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON or OFF)		 -
-
-		 50
1.5
1.5		 50
1.5
1.5		 45
1.7
1.7		 40
2.0
1.7		 40
2.5
2.0
9240T-500*
F9240T*
G9240T*		 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON or OFF)		 50
1.3
1.5		 50
1.3
1.5		 50
1.5
1.5		 -
-
-		 -
-
-		 -
-
-
9140W-500*
F9140W
G9140W*		 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON or OFF)		 -
-
-		 60
2.0
1.5		 60
2.0
1.7		 60
2.2
1.7		 60
2.7
2.0		 55
3.0
2.0
9140AH-500*
F9140AH		 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 -
-
-		 60
1.4
1.75		 60
1.4
1.75		 60
1.5
1.75		 60
2.0
2.0		 50
2.8
2.0
9140AHT-500*
F9140AHT		 Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)
Max. VSWR (OFF)		 -
-
-
-		 60
1.6
1.75
1.75		 60
1.6
1.75
1.75		 60
1.8
1.9
2.0		 60
2.5
2.0
2.2		 50
3.3
2.0
2.3

*Special-order product. Consult factory before ordering.
NOTE
(1) Models prefixed with “F” or “G” are equipped with integrated TTL-compatible drivers; models without the “F” or “G” prefix are currentcontrolled units and are furnished without drivers; models suffixed with “T” or “W” are non-reflective except a high VSWR will be present at the common port if all other ports are OFF; models suffixed with “H” are high-speed units.

PERFORMANCE CHARACTERISTICS

Power Handling Capability
   Without Performance Degradation
     Units without "T" or "W" suffix: 1W cw or peak
     Units with "T" or W suffix:
        Input to any "OFF" port: 100 mW cw or peak
        Input to any "ON" port: 1W cw or peak
        Input to common port: 1W cw or peak
   Survival Power
      Units without "T" or "W" suffix: 1W average   75W peak (1 µsec max. pulse width)
      Units with “T” or “W” suffix:
          Input to any “OFF” port: 1W average, 10W peak (1 µsec max. pulse width)
          Input to any “ON” port: 1W average, 75W peak (1 µsec max. pulse width)
          Input to common port: 1W average, 75W peak (1 µsec max. pulse width)

Switching Characteristics(2)
   SERIES 91/F91/G91
       Units without “H” suffix
           ON time ..................................... 250 nsec max.
           OFF time ................................... 250 nsec max.
       Units with “H” suffix
           Rise time ................................... 10 nsec max.
           Fall time.................................... 10 nsec max.
           ON time ..................................... 25 nsec max.
           OFF time ................................... 20 nsec max.
           Repetition rate .......................... 20 MHz max.
   SERIES 92/F92/G92
           ON time ..................................... 500 nsec max.
           OFF time ................................... 500 nsec max.

NOTE
(2) For driverless units, shaped current pulses must be provided by user.


Control Characteristics
   SERIES F91/F92, Units With Integrated Drivers
      Control Input Impedance
          Units without “H” suffix............... TTL, low power Schottky, one unit load.
(A unit load is 0.8 mA sink current and 40 µA source current.)
          Units with “H” suffix ................... TTL, advanced Schottky, one unit load.
(A unit load is 0.6 mA sink current and 20 µA source current.)
       Control Logic ................................ Logic “0” (–0.3 to +0.8V) for port ON and
logic “1”(+2.0 to +5.0 V) for port OFF

  SERIES G91/G92
       Control Input Impedance ............ Schottky TTL, one unit load.
(A unit load is 2.0 mA sink current and 50 µA source current.)
       Control Logic ................................ Logic “0” (–0.3 to +0.8V) for port ON and
logic “1” (+2.0 to +5.0 V) for port OFF.


Power Supply Requirements
   SERIES 91/92/F91/F92
       Driverless Units
       Bias current required at each port for rated isolation and Insertion loss.
       PORT OFF
         Units without “H” suffix .................. +50 mA
         Units with “H” suffix ....................... +30 mA
       PORT ON
         Units without “H” suffix .................. –50 mA
         Units with “H” suffix ....................... –35 mA
      Units With Integrated Drivers
      (For one port ON)
  +5V ± 5% –12 to –15V
Units Without
H” Suffix		 190 mA 80 mA
Units With
“H” Suffix		 95 mA 80 mA
Units With
“HT” Suffix		 135 mA 80 mA










    SERIES G91/G92
      (For one port ON).............................. +5V ±5%, 100 mA
                                                                  +15V ±5%, 40 mA



OPTION (G09) ENVIRONMENTAL RATINGS
Temperature Range
     Operating  Range .......................... –54°C to +110°C
     Non-Operating  Range................... –65°C to +125°C
Humidity ............................................. MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock ..................................................
MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration ............................................. MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude ............................................... MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling .....................................
 MIL-STD-202F, Method 107D Cond. A, 5 cycles



AVAILABLE OPTIONS
 Option No.   Description
 3  SMA female bias/control connectors
 7  SMA male RF connectors
33  EMI filter solder-type bias/control terminals
  41(3)  Internal video filter, common port only
42(3)  Internal video filter, output ports only
 43(3)   Internal video filter, all ports
 55(4)   Frequency range 0.5 to 18 GHz.
64A  SMB male bias/control connector
 G09   Guaranteed to meet Environmental Ratings
 G12  RoHS Compliant
 G18  REACH Compliant


NOTES
(3) Not applicable to Series 92/F92/G92. See impact of Video Filter Options on specifications at Switches Applications Notes.
(4) Applicable only to 1 to 18 GHz switches. See impact of Option  55 on specifications.

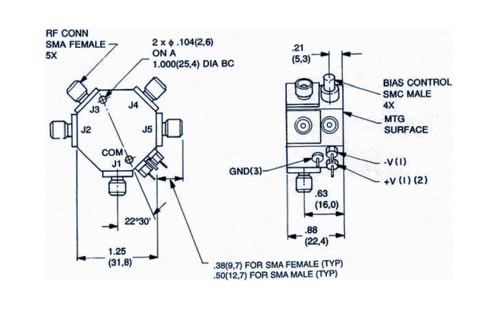

DIMENSIONS AND WEIGHT

Dimensions and Weights for Series 91 and 92 SP4T Switches

OUTLINE NOTES

(1) Used only on units with integrated drivers
(2) +15V for G91/G92 Series
(3) Not used on driverless units except with option 33


Weight 2 oz. (57 grams) approx.
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
