Models F9180 and F9180W Low Cost Broadband SP8T Switches

Application Notes for RF Switches

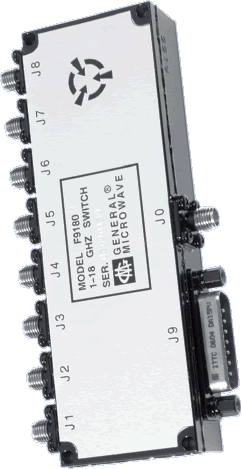

The Models F9180 and F9180W SP8T switches operate over a frequency range of 1 to 18 GHz. They are low-cost state-of-the-art, high isolation, low Insertion loss units. For the Model F9180, the reflective design, Insertion loss varies from 1.5 dB at 1 GHz to 4.4 dB at 18 GHz. The corresponding values for the Model F9180W, the non-reflective design, are 2.0 dB and 4.8 dB, respectively. Isolation varies from 65 dB at 1 GHz to 60 dB at 18 GHz, for Model F9180 and 55 dB for Model F9180W. The VSWR limit for both designs ranges from 1.7 to 2.0, depending on frequency. These units switch in under 250 nanoseconds. They operate over temperature ranges as wide as -54°C to +110°C and withstand RF power levels as high as 75 watts peak, 1 watt average.

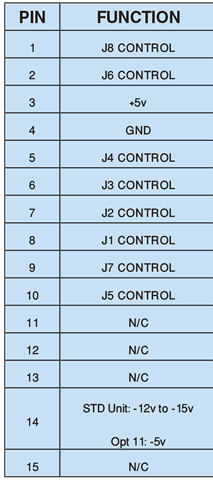

Each model weighs 8.5 ounces and measures 4.65 x 1.5 x 0.75". They are powered by +5V DC and -12 to -15V DC (standard) or by ±5V DC (Option 11). Individual port TTL logic control and power supply connections are made by means of a DA15P connector.

  • Frequency range: 1 to 18 GHz
  • Reflective and non-reflective models
  • High isolation, low Insertion loss and VSWR
  • Switching time: 250 nsec
Low Cost Broadband SP8T Switch Model F9180
    FREQUENCY (GHz)
MODEL NO.(1) CHARACTERISTIC 1-2 2-4 4-8 8-12.4 12.4-18
F9180* Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		 65
1.5
1.7		 65
2.0
1.7		 65
2.4
2.0		 65
3.2
2.0		 60
4.4
2.0
F9180W Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON or OFF)		 65
2.0
1.7		 65
2.3
1.7		 65
3.2
2.0		 60
3.5
2.0		 55
4.8
2.0

*Special-order product. Consult factory before ordering.

(1) Models prefixed with “W” are non-reflective except a high VSWR will be presented at the common port if all other ports are OFF.

PERFORMANCE CHARACTERISTICS

Power Handling Capability
   Without Performance Degradation
      F9180: ............................................... 0.5W cw or peak
      F9180W:
         Input to any "OFF" port: .................. 100 mW cw or peak
         Input to any "ON" port: .................... 0.5W cw or peak
         Input to common port: ................... 0.5W cw or peak
   Survival Power
       F9180: ...............................................
 1W average, 75W peak (1 μsec max. pulse width)
       F9180W:
          Input to any "OFF" port: .................. 1W average, 10W peak (1 μsec max. pulse width)
          Input to any "ON" port: ...................
 1W average, 75W peak (1 μsec max. pulse width)
          Input to common port: ...................
 1W average, 75W peak (1 μsec max. pulse width)

Switching Time
   ON time..................................................
  250 nsec max.
   OFF time.................................................  250 nsec max.

Power Supply Requirements..............

+5V ±5%, 100 mA
-12V to -15V, 50 mA

Control Characteristics
   Control LOGIC.........................................

 Logic "0" (-0.3 to +0.8V) for port ON
 Logic "1" (+2.0 to +5.0V) for port OFF
   Control INPUT IMPEDANCE....................  0.5 mA sink current, max.









OPTION (G09) ENVIRONMENTAL RATINGS
Temperature Range
   Operating................................................. -54°C to +110°C
   Non-Operating......................................... -65°C to +125°C
Humidity..................................................... MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock..........................................................
 MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration..................................................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude.......................................................
 MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling.............................................. MIL-STD-202F, Method 107D, Cond. A, 5 cycles


ACCESSORIES FURNISHED

Mating power/logic connector



AVAILABLE OPTIONS

 Option No.     Description
        7              SMA male RF connectors
        9              Inverse control logic; logic "0" for port OFF and logic "1" for port ON
       11             ±5V operation

      41(1)               Internal video filter, common port only
      42(1)               Internal video filter, output ports only
      43(1)               Internal video filter, all ports
      G09            Guaranteed to meet Environmental Ratings
      G12            RoHS Compliant
      G18            REACH Compliant

NOTE
(1) *See Video Filter Options on Switches

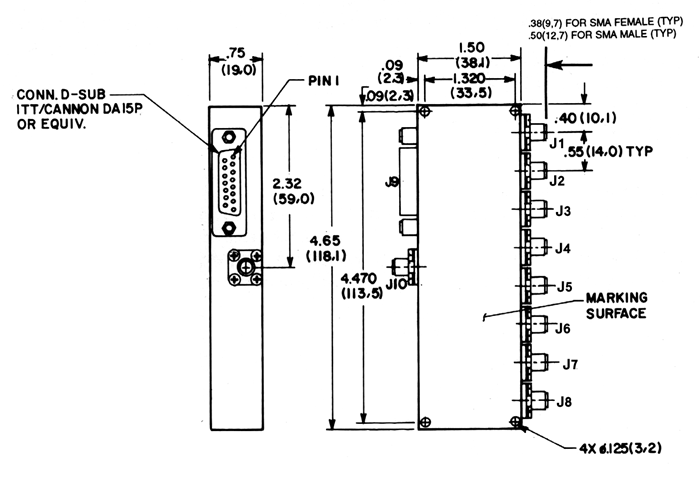

DIMENSIONS AND WEIGHT

Weight 8.5 oz. (240 gr.) approx.



Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
