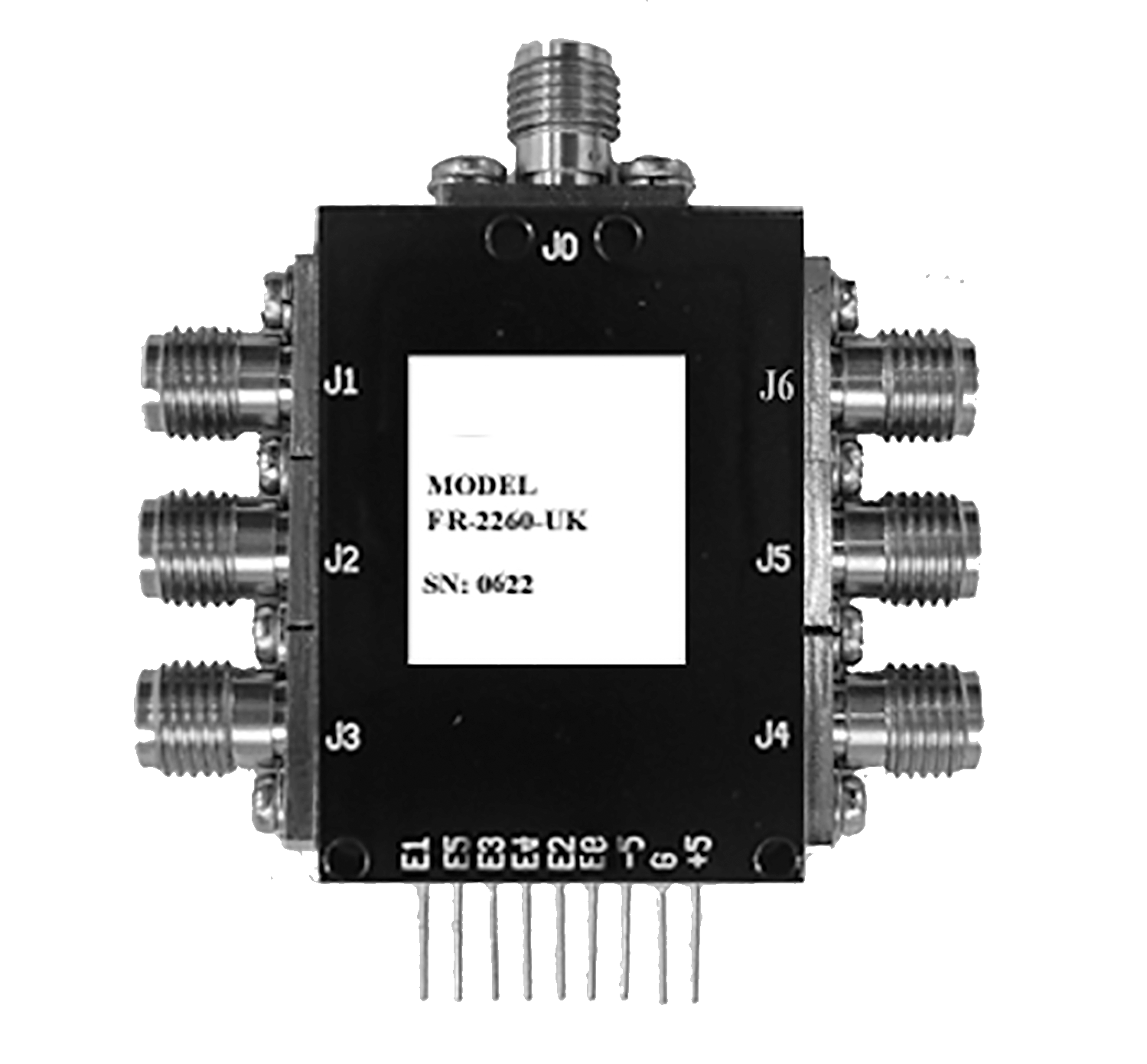

Model FR 2260 UK Hermetically Sealed Low Profile SP6T Switch

The Model FR-2260-UK is a hermetically sealed, low cost high speed, SP6T PIN diode switch with integrated driver.
The switch operates over the instantaneous frequency range of 0.5 to 18 GHz, with an option of 1 to 20 GHz

This switch can be ordered in the basic catalog configuration as specified below, or in a much thinner outline or as
a drop-in switch.

PERFORMANCE SPECIFICATIONS



  CHARACTERISTIC  FREQUENCY (GHz)
0.5-2  2-4
 4-8 8-12
 12-18
 FR-2260-UK Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)		  70
 2.0
1.8:1
 75
 2.0
1.9:1
 70
 2.5
2.0:1
 65
 3.0
2.0:1
 60
 3.6
2.0:1
  • Frequency range: 0.5 to 18 GHz
  • Low VSWR and Insertion loss
  • Isolation: up to 70 dB
  • Small size, light weight
  • With Integrated Driver
  • Low Video Leakage
  • Removable Connectors
Hermetically Sealed Low Profile SP6T Switch Model FR-2260-UK
Switching Time
 ON time.....................................................  20 nsec max.
 OFF time....................................................  20 nsec max.

Power Handling Capability
Without Performance Degradation............ 200 mW cw or peak
Survival Power............................................ 1W CW, 20W peak (1/µsec max. pulse width with 5% duty cycle). Derate Linearly to 50% at +95°C
Control Logic.............................................. Logic “0” (0 to +0.8V) = Insertion Loss  Logic “1” (+2.0 to +5.5V) = Isolation



ENVIRONMENTAL RATINGS
Operating Temperature Range.................. –54°C to +95°C
Humidity.................................................... MIL-STD-202F, Method 103B, Cond. B
Shock.........................................................
 MIL-STD-202F, Method 213B, Cond. B
Vibration.................................................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude...................................................... MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Thermal Shock.......................................... MIL-STD-202F, Method 107D, Cond. A, 5 cycles










 Power Supply Requirements

 +5V ±0.5V (mA), max 160
 -12V ±10% (mA), max  100








AVAILABLE OPTIONS

  • TTL control logic (inverting or non-inverting)
  • BCD Decoder driver
  • Other DC Voltage supply
  • Over Voltage Protection
  • Non-Reflective
  • Drop-In package
  • Extremely Low Profile, thickness of 6.1mm (0.24”)

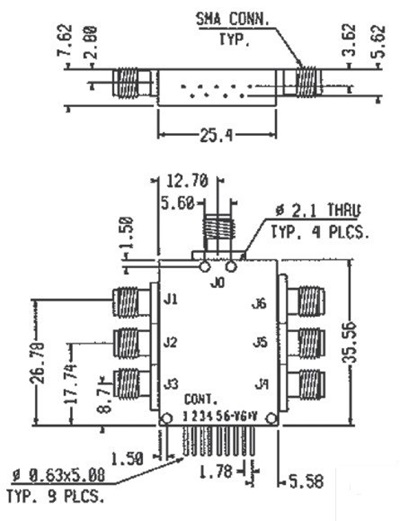

DIMENSIONS

Dimensions and Weight for SP6T Switch Model FR-2260-UK
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
