Model F192A Non-Reflective Ultra-Broadband High-Speed SPST Switch/Pulse Modulator

Application Notes for RF Switches
The Model F192A is a high-speed non-relective PIN diode SPST switch/Pulse Modulator with integrated driver. Operating over the instantaneous frequency range from 0.2 to 18 GHz, it provides a minimum isolation of 80 dB from 0.5 to 18 GHz, and 70 dB below 0.5 GHz. The RF design consists of an arrangement of shunt and series diodes in a microstrip





integrated circuit transmission line as shown in the schematic diagram below

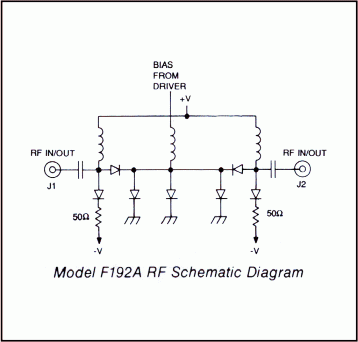

. Model F192A RF Schematic Diagram
The currents required to switch the unit ON or OFF and simultaneously maintain a bilateral 50-ohm impedance match in both states are provided by the integrated driver, which is controlled by an external logic signal.









  • High speed
  • 0.2 to 18 GHz frequency range
  • 80 dB isolation
  • Non-reflective
  • Low VSWR and Insertion loss
  • Small size, light weight
Non-Reflective Ultra Broadband High-Speed SPST Switch Model F192A

PERFORMANCE CHARACTERISTICS

CHARACTERISTIC FREQUENCY (GHz)
0.2 to 0.5 0.5 to 2.0 2.0 to 8.0 8.0 to 12.4 12.4 to 18.0
Min Isolation (dB) 70 80 80 80 80
Max Insertion Loss (dB) 2.0 2.0 2.5 3.0 3.5
VSWR (ON and OFF) 1.5 1.5 1.75 2.0 2.0

Switching Speed
     Rise Time ..... 10 nsec. max.
     Fall Time ........ 10 nsec. max.
     ON Time ........ 30 nsec. max.
     OFF Time ....... 15 nsec. max.

Power Handling Capability
   Without  Performance Degradation....................... 500 mW cw or peak
    Survival Power ..................................................
 1W average, 10W peak (1 µsec max. pulse width)
 Power Supply Requirement
    +5V ±5%, 90 mA
   –12V ±5%, 75 mA

 Control Characteristics
Control Input Impedance ........... TTL, advanced Schottky, one-unit load. (A unit load is 0.6 mA sink current and 20µA source current.)
Control Logic ........................... Logic "0" (-0.3 to +0.8V) for switch ON and logic "1" (+2.0 to +5.0V) for switch OFF


OPTION (G09) ENVIRONMENTAL RATINGS
Operating Temperature Range...........
 -54°C to + 110°C
Non-Operating Temperature Range...... -65°C to + 125°C
Humidity .......................... MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock .............................. MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration ......................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude ............................ MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling ................. MIL-STD-202F, Method 107D, Cond. A, 5 cycles


AVAILABLE OPTIONS
Option No. Description
3 SMA female control connector
7 Two SMA male RF connectors
9 Inverse control logic; logic "1" for switch ON and logic "0" for switch OFF
10 One SMA male (J1) and one SMA female (J2) RF connector
33 EMI filter solder-type control terminal
48 +5V, –15V operation
64a SMB male control connector
G09  Guaranteed to meet Environmental Ratings
G12 RoHS Compliant
G18 REACH Compliant


DIMENSIONS AND WEIGHT

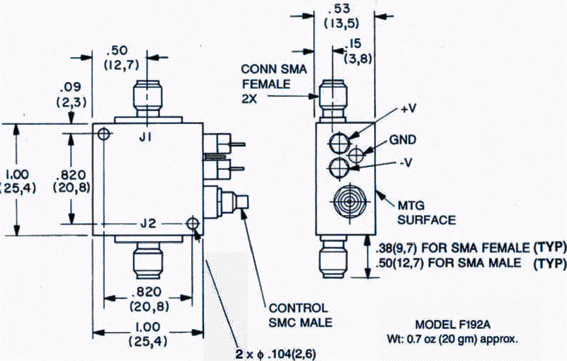

Model F192A Non-Reflective Switch Dimensions and Weight

Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008

Model F192A (Download 3D Model)


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
