Model E9120H and E9120HT Economical Hermetically Sealed High-Speed SPDT Switch

Application Notes for RF Switches
The Model E9120H is a hermetically sealed, low cost high speed, SPDT PIN diode switch with integrated driver. The switch can be used as a drop-in module. The switch operates over the instantaneous frequency range of 1 to 18 GHz. The Model E9120HT is a non-reflective version of this switch.
  • Low cost
  • Frequency range: 1 to 18 GHz
  • High speed: 10nsec rise fall times
  • Isolation 60 dB
  • Reflective and non-reflective models
  • Low VSWR and Insertion loss
  • Low in-band video leakage
  • Hermetically sealed
  • Low profile
  • Can be used as a drop-in module
Hermetically Sealed High-Speed SPDT Switch Model E9120H

PERFORMANCE CHARACTERISTICS

  FREQUENCY (GHz)
MODEL NO. CHARACTERISTIC 1—4 4—8 8—12.4 12.4—18
E9120H Min. Isolation (dB)
Max Insertion Loss (dB)
Max. VSWR (ON)		 60
1.1
1.75		 60
1.4
1.75		 60
2.0
1.75		 50
2.5
2.0
E9120HT Min. Isolation (dB)
Max Insertion Loss (dB)
Max. VSWR ON
Max. VSWR Port OFF		 60
1.3
1.75
1.75		 60
1.7
1.9
2.0		 60
2.5
2.0
2.2		 50
3.0
2.0
2.3


Power Supply Requirements
  Standard Switch With Option 11 With Option 62
MODEL NO. +5V ±5% -12V ±5% +5v ±5% -5V ±5% +5V ±5% -15V ±5%
E9120H 95 mA max 70 mA max 95 mA max 70 mA max 95 mA max 70 mA max
E9120HT 95mA max 70 mA max 95 mA max 70 mA max 95 mA max 70 mA max



Switching Characteristics
   Rise Time........................ 10 nsec max.
   Fall Time.......................... 10 nsec max.
   ON Time........................... 25 nsec max.
   OFF Time......................... 20 nsec max.
   Max. Repetition Rate.....  20 MHz



Power Handling Capability
  Without Performance Degradation
   Reflective Swtiches   ........... 200 mW cw or peak
   Non-Reflective Swtiches
      Input to OFF port  .......... 100 mW cw or peak
      Input to ON port  ............ 200 mW cw or peak
      Input to COMMON port  .................      200 mW cw or peak



Survival Power
    Reflective Switches...... 1W average, 75W peak. (1µsec max. pulse width)
    Non-Reflective Switches
       Input to OFF port:......... 1W average, 10W peak (1 µsec max. pulse width)
       Input to ON.................... 1W average, 75W peak (1 µsec max. pulse width)
       Input to to COMMON Port...  1W average, 75W peak (1 µsec max. pulse width)



Control Characteristics
   Control Input Impedance..................
TTL, 1-unit load
   Control Logic
      Logic "0"........................ (max. VIL = 0.8V) for switch ON
      Logic "1"....................... (min. VIH = 2V) for switch OFF





ENVIRONMENTAL RATING - OPTION G09

1.

Operating Temperature Range –  -54°C to +95°C.

2.

Humidity – MIL-STD-202G, Method 103B, Condition B (96 hours at 95%).

3.

Shock – MIL-STD-202G, Method 213B, Condition A (50G, 11 msec).

4.

Vibration – MIL-STD-202G, Method 204D, Condition B (0.06” double amplitude or 15G,

5.

Altitude – MIL-STD-202G, Method 105C, Condition B (50,000 ft.).

6.

Temperature Cycling – MIL-STD-202F, Method 107D, Condition A (5 cycles.).


AVAILAVBLE OPTIONS
(Consult factory before ordering)
Option No.
 Description
7
 SMA male RF connectors all ports
9
 Inverse control logic; logic "1" for switch ON and logic "0" for switch OFF
11
 +5V, -5V operation
27
 Single-port toggle; logic: Logic "0" connects J1 to J2
43*
 Internal video filter, all ports
49
 High Reliability Screening per the following Table 1
62
 +5, -15V operation
G09
 Guaranteed to meet Environmental Ratings



Table 1. Option 49 High Rel Screening - MIL - STD 883

TEST METHOD CONDITION
Internal Visual 2017 —
Temperature Cycle 1010 A
Mechanical Shock 2002 B
Burn-In 1015 —
Leak 1014 A1

DIMENSIONS AND WEIGHT


Model E9120H/HT

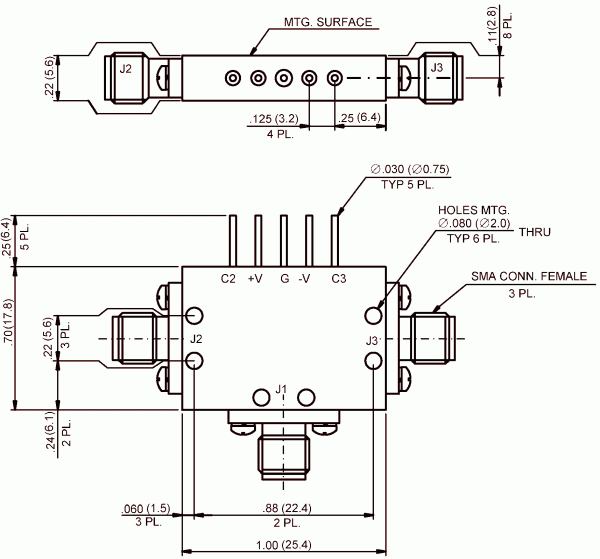

Model E9120H and E9120HT SPDT Switch Dimensions and Weights
Wt.: 0.42 oz. (12 gm) approx.
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
