Model 2629 Low Cost SP6T Switch

Application Notes for RF Switches

Model 2629 is a Low Cost high-performance terminated SP6T switch that operates over the full instantaneous bandwidth of 1 to 18 GHz with ON and OFF times of 500 nsec. The Model 2629 is equipped with an integrated driver that is powered by +5 and -12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE CHARACTERISTICS

CHARACTERISTIC
FREQUENCY RANGE (GHz) 1-18
MIN. ISOLATION (dB) 55
MAX. INSERTION LOSS (dB) 4.8
MAX. VSWR (ON/OFF) 2.2
PHASE MATCHING BETWEEN PORTS (deg, max) ±10
AMPLITUDE MATCHING BETWEEN PORTS (dB, max) ±0.6
HARMONICS @ +25 dBm (dBc, max) -35


  • Frequency range: 1 to 18 GHz
  • Isolation: up to 55 dB
  • All in-line outputs
  • Phase and amplitude matched
  • Non-reflective
Low Cost SP6T Switch Model 2629
Switching Time
   ON time .................................. 500 nsec max.
   OFF time ................................ 500 nsec max.

Power Handling Capability
 Without Performance Degradation.......... OFF port 100 mW cw or peak; ON port 1W average
Survival Power ......................... OFF port 10W peak; ON port 75W peak (1 μsec max. pulse width)

Power Supply Requirements  ..........................                    +5V ±5%, 250 mA max
                                                                                             -12V ±5%, 100 mA max
Control Characteristics
Control Input Impedance.........................

 Schottky TTL, two unit loads. (A unit load is 2 mA sink current and 50 μA source current.)
Control Logic ..........................
Logic "0" (-0.3 to +0.8V) for Port "ON"  Logic "1" (+2.0 to +5.0V) for Port "OFF"

OPTION (G09) ENVIRONMENTAL RATINGS

Operating Temperature Range..................................... -55°C to +110°C
Non-Operating Temperature Range............ -65°C to +125°C
Humidity..................................... MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock........................................ MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration................................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude....................................... MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling........................... MIL-STD-202F, Method 107D, Cond. A, 5 cycles
AVALIABLE OPTIONS
Option No.     Description
G09           Guaranteed to meet Environmental Ratings
G12           RoHS Compliant
G12           REACH Compliant

DIMENSIONS AND WEIGHTS

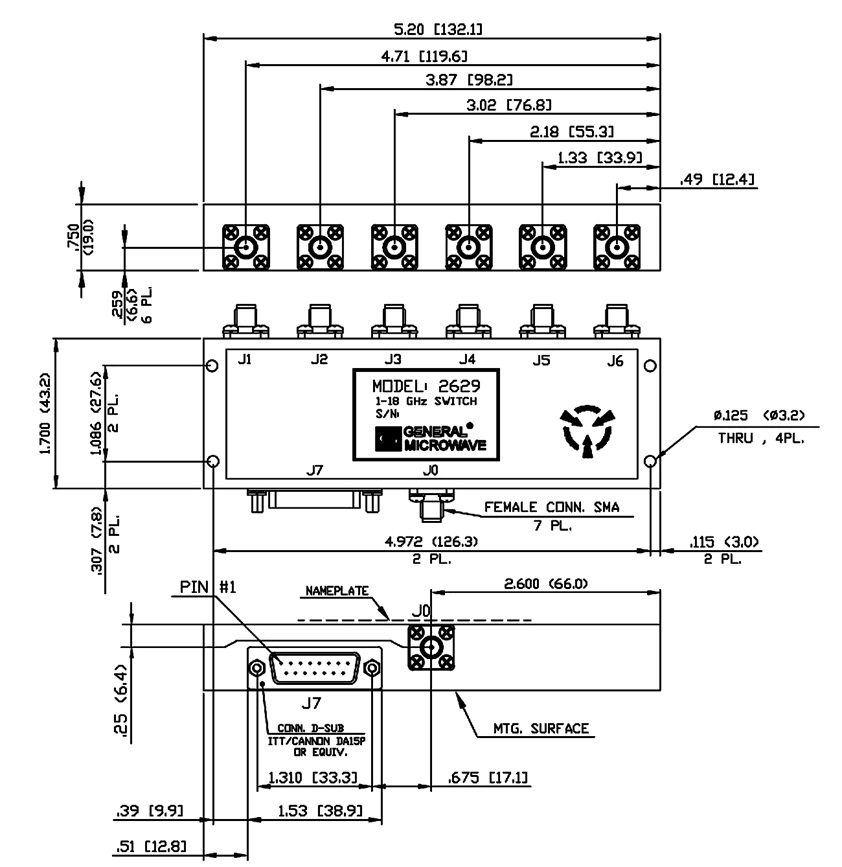

Model 2629 SP6T Switch Dimensions and Weights
WEIGHT (APPROX): 300 grams, 10.5 oz. a0
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

PIN OUT
PIN FUNCTION
1 +5V
2 N/C
3 J2 Control
4 N/C
5 J4 Control
6 N/C
7 J6 Control
8 -12V
9 J1 Control
10 N/C
11 J3 Control
12 N/C
13 J5 Control
14 N/C
15 GND
