Model 2553-B48 SP12T Phase and Amplitude Matched Switch

  Application Notes for RF Switches

 Model 2553 series consists of SP8T-SP12T multi throw switches. In this series, all output ports are in-line and the ports are phase and amplitude matched.
  • Wide Frequency range
  • Phase matched
  • Amplitude matched
  • All in-line output ports
  • Non-reflective
 The 2553 series consists of the following multi throw switches:
     TYPE        MODEL NO.
     SP8T        2553-B90
     SP10T      2553-B39
     SP12T      2553-B48

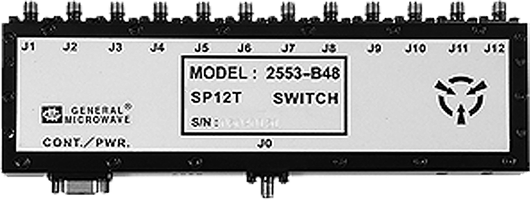

 2553-B48

  PERFORMANCE SPECIFICATIONS
MODEL 2553-B48
  FREQUENCY RANGE (GHz)
6.0
to
12.0		 12.0
to
18.0
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF		 70
4.3
2.0:1
2.2:1		 70
5.6
2.0:1
2.2:1


Amplitude Matching (between ports).........................
1.2 dB, max.
Phase Matching (between ports)......................... 30°, max.

Switching Time
  ON time .............................................................. 700 nsec max.
  OFF time ........................................................... 700 nsec max.

Power Handling Capability
  Without Performance Degradation..........................
 600 mW cw or peak
   Survival Power..................................................... 1.5W cw



Power Supply Requirements
                                                                                                            +5V±5%,350 mA max

                                                                                                            -12V±5%,100 mA max



Operating Temperature.............................................                          0°C to +70°C
Storage Temperature.................................................                         -20°C to +70°C

Control Characteristics
Control Input Impedance ....................................... Schottky TTL, two unit loads. (A unit load is 2 mA sink current and 50 μA source current.)
Control Logic ........................................................ Logic "0" (-0.3 to +0.8V) for "ON" state. Logic "1" (+2.0 to +5.0V) for "OFF" state.


AVAILABLE OPTIONS
OPTION NO                          DESCRIPTION

G12                                       RoHS Compliant

G18                                       REACH Compliant





DIMENSIONS AND WEIGHTS

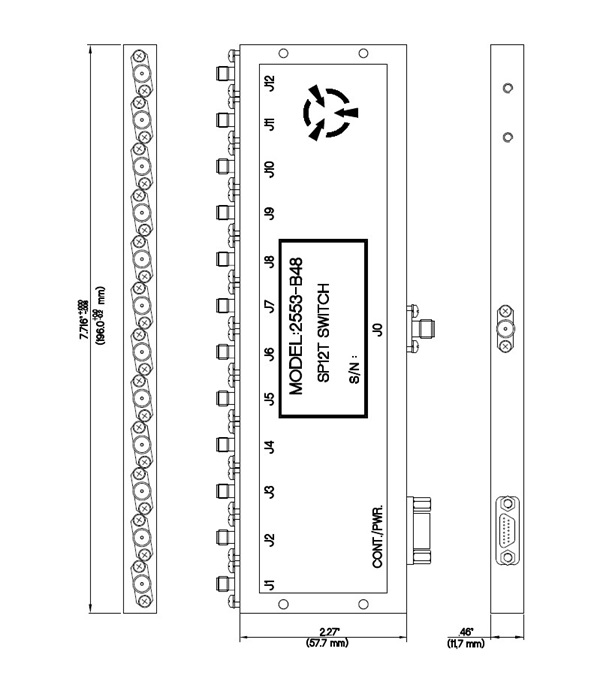

MODEL 2553-B48 SP12T SWITCH
Dimensions and Weight for SP12T Phase and Amplitude Matched Switch
PIN OUT
PIN FUNCTION
1 +5V
2 J2 Control
3 J4 Control
4 J6 Control
5 J8 Control
6 J10 Control
7 J12 Control
8 -12V
9 J1 Control
10 J3 Control
11 J5 Control
12 J7 Control
13 J9 Control
14 J11 Control
15 GND


Weight approx 260 gr (9.2 oz)

Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
