High Power SP3T Switches Series HPS 9000

  Application Notes for RF Switches
        Special Order Product Consult Factory Before Ordering
 Kratos General Microwave has developed series HPS900 line of High Power SP3T switches for various applications. These switches operate in the IFF and L bands, providing Power handling capability of up to 1kW in cold switching.. Typically these switches are assembled in a multi-switch assembly. The number of switches in one sub-assembly depends upon the specific architecture of the system. The control and supply voltages to the switch sub-assembly is supplied via a multi-pin connector.
  • High Power
  • Low Insertion loss
  • High Speed
  • Cold Switching
  • Non-reflective

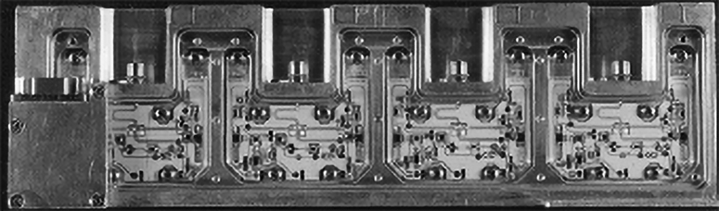

  Switch Model HPS-9302
(4 SWITCHES IN A SUB-ASSEMBLY)


Kratos General Microwave has developed series HPS900 line of High Power SP3T switches for various applications. These switches operate in the IFF and L bands, providing Power handling capability of up to 1kW in cold switching.. Typically these switches are assembled in a multi-switch assembly. The number of switches in one sub-assembly depends upon the specific architecture of the system. The control and supply voltages to the switch sub-assembly is supplied via a multi-pin connector.

PERFORMANCE CHARACTERISTICS

   MODEL
PARAMETER
HPS 9301 HPS 9302 HPS 9303
Power Handling (W), 100 µsec pulse width, 10% duty cycle
 350 500
1,000
Frequency Range IFF L BAND L BAND
Frequency Bandwidth  10%  10%  10%
Min. Isolation (dB) 40  30 40
Max. Insertion loss (dB) 1.2
 1.2 1.3
VSWR ON and OFF 1.4:1  1.4:1  1.4:1








Switching Characteristics
ON Time ................................. 3.5 µsec max.
OFF Time ................................ 3.5 µsec max.

Power Supply Requirements
(For one port ON)

MODEL +5V ± 5%  Negative Voltage
  mA  V  mA
HPS 9301 400
-60
40
 HPS 9302  450  -60  40
 HPS 9303  450  -90  40












Control Characteristics
Control Input Impedance.......... TTL, low power Schottky, one unit load. (A unit load is 0.8 mA sink current and 40 µA source current.)
Control Logic........................... Logic “0” (–0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0 V) for port OFF.



AVAILABLE OPTIONS
1. Operating Frequency Range
2. Mechanical Configuration



ENVIRONMENTAL RATINGS

Temperature Range
Operating..................... –55°C to +70°C

Non Operating............. –65°C to +125°C

Humidity............................. MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock................................. MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration........................... MIL-STD-202F, Method 204D, Cond. B (.06” double amplitude or 15G, whichever is less)
Altitude............................. MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)

DIMENSIONS AND WEIGHT

These High Power Switches are normally incorporated in systems as a sub-assembly of two or more switches. For this reason specific outline and weight information can be provided per specific requirement.

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
