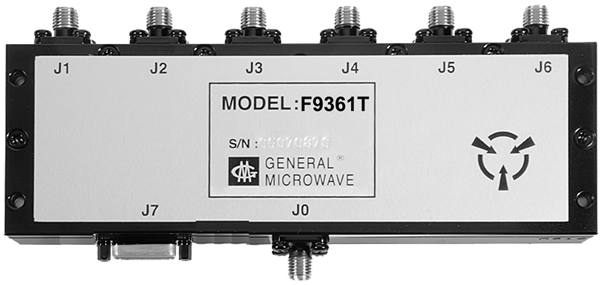

2 to 21 GHz Model F9361T SP6T Switch

Model F9361T is a low cost high-performance terminated SP6T switch that operates over the full instantaneous bandwidth of 2 to 21 GHz with ON and OFF times of 500 nsec. Design features include an integrated circuit assembly of PIN diodes mounted in a microstrip transmission line. The Model F9361T has all of the output ports on one side while maintaining Amplitude and Phase matching between all output ports. The Model F9361T is equipped with an integrated driver that is powered by +5 and -12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE SPECIFICATIONS

 CHARACTERISTIC   SPECIFICATION
  FREQUENCY RANGE (GHz) 2 to 21
  MIN. ISOLATION (dB) 55
  MAX. INSERTION LOSS (dB)   5.5
  MAX. VSWR (ON/OFF) 2.5
  • Frequency range: 2 to 21 GHz
  • Isolation: 50 dB
  • In-line outputs
  • Phase and amplitude matched
  • Non-reflective
  • Decoder (Optional)
  • LVDS Interface (Optional)
  • RS-422/RS-485 Interface (Optional)
    		•

    F9361T

     PHASE AND AMPLITUDE MATCHING
         Amplitude Matching  ............................ 1 dB typical
         Phase Matching   .................................. 12o typical
     SWITCHING TIME
       ON/OFF Time   ........................................ 500 nsec max.

     POWER HANDLING CAPABILITY
       Without Performance Degradation
               OFF Port .......................................... 100 mW cw or peak
               ON Port ........................................... 1W cw or peak
       Survival Power
                OFF Port.......................................... 1W average, 10W peak (1  sec max. pulse width)
                ON Port ........................................... 1W average, 75W peak (1  sec max. pulse width)
     POWER SUPPLY REQUIREMENTS
          +5V ±5%    ............................................. 250 mA max.
          -12V ±5%  .............................................. 100 mA max.

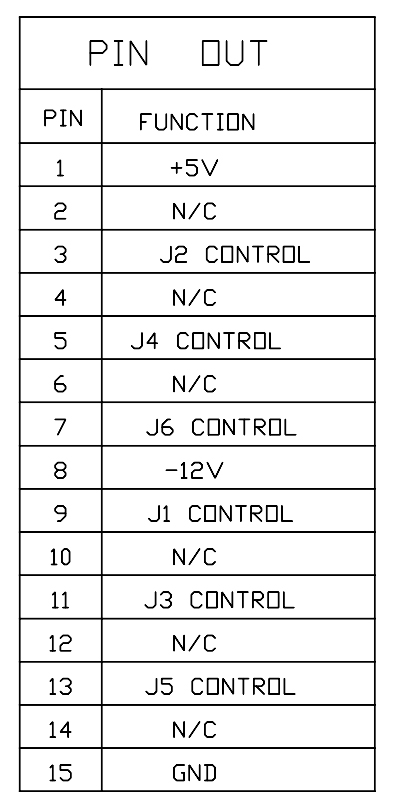

    CONTROL CHARACTERISTICS
    Control Input Impedance .............................
    		 TTL, advanced Schottky, one unit load. (A unit load is 0.6 mA sink current and 20 μA source current.)
    Control Logic ............................................... Logic "0" (-0.3 to +0.8V) for port ON and logic "1" (+2.0 to +5.0V) for port OFF.

    OPTION (G09) ENVIRONMENTAL RATING
    Operating Temperature Range ...................... -54°C to +110°C
    Non-Operating Temperature Range ................ -65°C to +125°C
    Humidity  ...................................................... MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
    Vibration ....................................................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
    Altitude ......................................................... MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
    Temp. Cycling .................................................   MIL-STD-202F, Method 107D, Cond. A, 5 cycles
    AVAILABLE OPTIONS
    OPTION NO. DESCRIPTION
     G09 Guaranteed to meet Environmental Ratings
     G12 Rohs Compliant
     G18 REACH Compliant

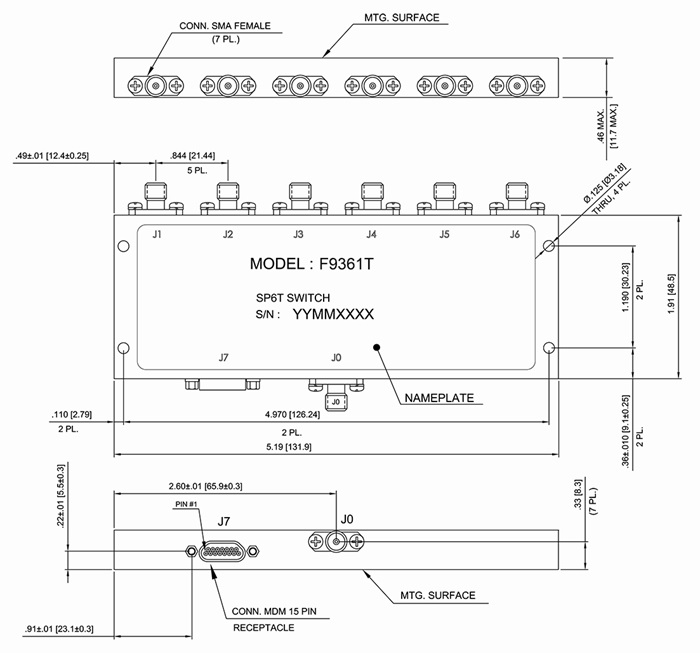

    DIMENSIONS AND WEIGHTS


    Weight approx 150 gr (5.3 oz) Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




    The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
