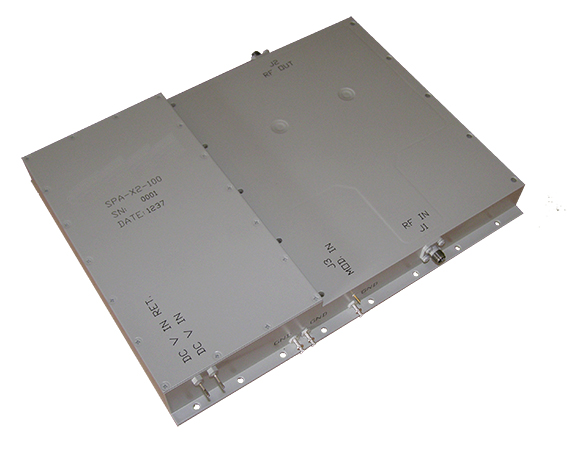

PARAMETER
|
SPECIFICATION
|
|
1
|
Frequency Range (GHz) |
X Band
|
| 1.1 |
Bandwidth, %, max. |
9(1)
|
|
2
|
Peak Saturated Output Power, min. (W)
|
100
|
|
2.1
|
Average Output Power, min. (W) |
25
|
2.2
|
Amplitude Flatness, dB PTP
|
1.2
|
|
2.3
|

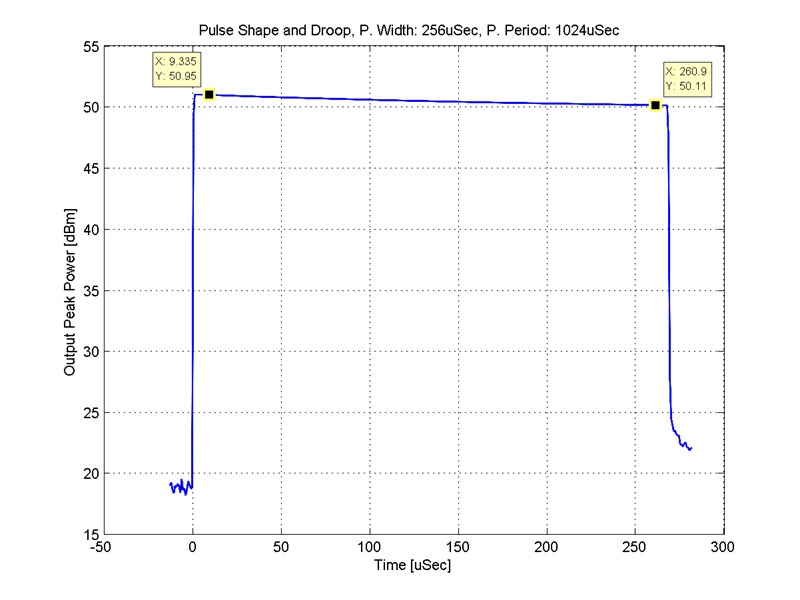

RF Out Amplitude Droop @ Pulse Width of 250 µSec, max. (dB)
|
1.5
|
|
3
|
Output Load VSWR, max
|
2:1
|
|
4.1
|
Large Signal Gain, min. (dB) |
53(2)
|
| 4.2 |
Input RF Drive (dBm), max. |
5(2)
|
| 5 |
RF Pulse Width (µs), max. |
250(2)
|
| 6 |

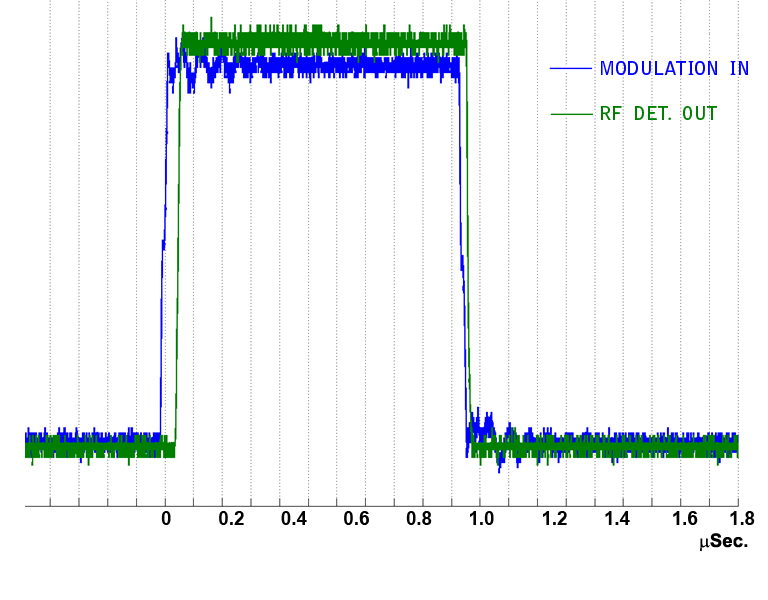

RF Rise/Fall Time, max. (nSec.)
|
50 |
| 7 |
Duty Cycle, max (%) |
25
|
| 8 |
PRF (kHz)
|
1-600(2) |
| 9 |
Input Supply Voltage (V)
|
+28V(3) |
| 9.1 |
Average Input Current, max (A)
|
7 |
| 10 |
DC Power Consumption, max (W) |
215 |
| 11 |
Switching Power Supply (Provided as part of the SSPA) |
Ultra quiet, non-synchronized architecture |
|
12
|
Spurious Level between PRF Control Lines, min. (dBc) |
70
|
| 13 |
Efficiency, min (%) |
15 |
| 14 |
Operating Temperature Range (°C)
|
-40 to +85
|
| 15 |

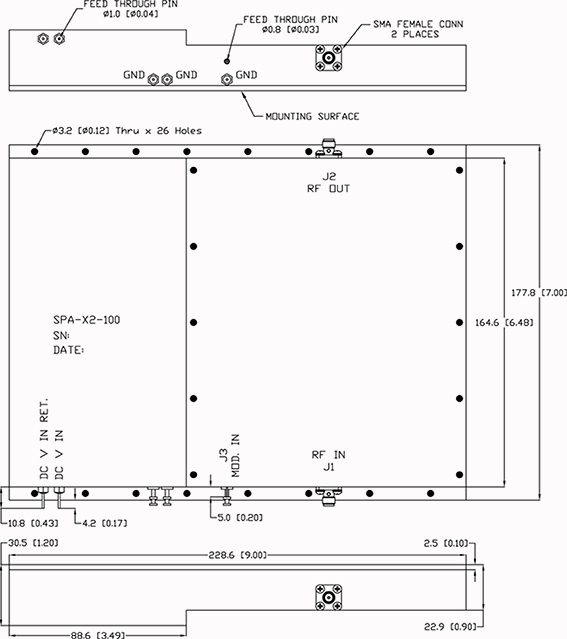

Dimensions L x W x H (Inch)
|
9.00 x 7.00 x 1.2 |
|
16
|
Dimensions L x W x H (mm) |
228.6 x 177 x 30.5
|
