Narrowband Limiters Series LIM 89/812/2564

                                                                                                                                        Special Order Product Consult Factory Before Ordering

PERFORMANCE CHARACTERISTICS

Model LIM-89-15 LIM-812-50 LIM-2564-00
Frequency Range (GHz) 8.4 -9.6 8-12 1.28 -1.4
Insertion Loss, dB max 2.0 2.2  0.6
V.S.W.R, max 2.0:1 1.8:1  1.5:1
Input Power, Watts, max CW 15 5  30
Peak 50 50  300
Pulse Width, μSec. max 20 10  25
Duty Cycle, % max 5.0 10  13
Flat Leakage, mWatts max 64 100  32
Recovery Time, nSec max 500 500  200
Operating Temperature Range, °C max -30 to +75  -30 to +75  -30 to +75
Package 200/2-79 200/2-79  200-2564
Connectors Input SMA (Female)
Output SMA (Female)

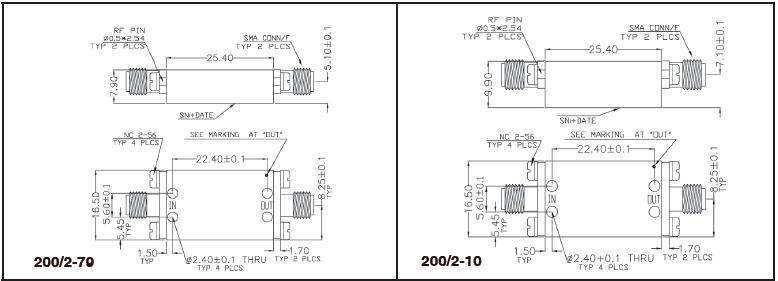

Package


Dimensions are stated in mm. Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
