Kratos Microwave Electronics Division (KMED)

Full Line Product Catalog

Narrow Band Limiters Series LIM 1015

                                                                                                                                        Special Order Product Consult Factory Before Ordering

PERFORMANCE CHARACTERISTICS

Model LIM-1015-20
Frequency Range (GHz) 10-15
Insertion Loss, dB max 2.0
V.S.W.R, max 1.8:1
Input Power, Watts, max CW 20
Peak 50
Pulse Width, μSec. max 1
Duty Cycle, % max 0.1
Flat Leakage, mWatts max 32
Recovery Time, nSec max 400
Operating Temperature Range, °C max -30 to +75
Package 200/2-79
Connectors Input SMA (Female)
Peak SMA (Female)

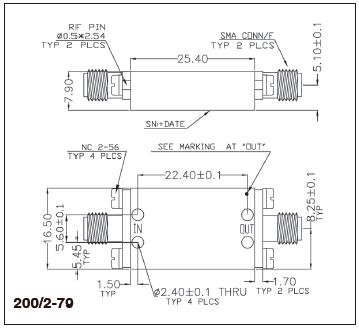

Package

Narrowband Microwave Limiters Series LIM 1015

Dimensions are stated in mm. Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
