MODEL
|
SA-335-5-1-60 |
| Frequency Range, min (MHz) |
3.0 to 3.5 (1)
|
| Attenuation Range, min (dB) |
31 (2) |
| Insertion Loss, max (dB) |
3.8
|
| VSWR, max |
2:1 |
| Number of Bits |
5 |
| LSB, max (dB) |
1 |
| Monotonicity |
Guaranteed |
| Accuracy of Attenuation |
± 0.3 dB @ 0 to 31 dB
|
| Attenuation Flatness, max (dB) |
± 0.5 dB @ 0 to 15 dB
± 0.75 dB @ 15 to 31 dB
|
| Power Handling, max (dBm) |
23 |
| Switching Time, max (nsec) |
100 |
| Rise and Fall Time (nsec) |
30
|
| Switching Rate (MHz) |
2.0 |
| Video Leakage (mV) PTP |
150 |
| Control Logic |
‘1’ = I.Loss
‘0’ = Att. |
| Control Input |
TRUE TTL GATE |
| Power Supply Requirements |
+5V ± 2% @ 300 mA
|
| Environmental Conditions |
 |
|
Package Type
|

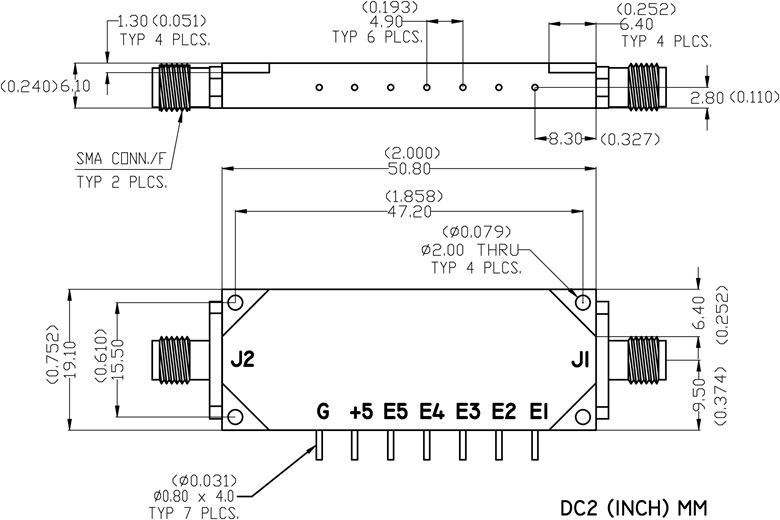

DC 2 |
