MODEL
|
SA-26-6-1 |
SA-26-7-1 |
SA-26-8-0.25 |
| Frequency Range, min (GHz) |
2-6 (1)
|
2-6 (1) |
2-6 (1) |
| Attenuation Range, min (dB) |
63 (2) |
81 (2) |
63.75 (2) |
| Insertion Loss, max (dB) |
5.0 |
5.5 |
6.5 |
| VSWR, max |
2.0:1 |
2.0:1 |
2.0:1 |
| Number of Bits |
6 |
7 |
8 |
| LSB, max (dB) |
1 |
1
|
0.25 |
| Monotonicity |
Guaranteed |
|
Accuracy of Mean
Attenuation, max (dB)
|
± 0.5 @ 0dB to 15 dB
± 0.75 @>15dB to 31dB
± 1.0 @> 31dB to 63 dB
|
± 0.5 @ 0dB to 21dB
± 1.0 @ >21dB to 41dB
± 1.5 @ >41dB to 81dB
|
± 0.5 @ 0dB to 21dB
± 1.0 @ >21dB to 41dB
± 1.5 @ >41 to 63.75dB |
| Attenuation Flatness, max (dB) |
± 0.5 @ 0dB to 15dB
± 0.75 @ >15dB to 32dB
± 1.0 @ >32dB to 63 dB
|
± 0.5 @ 0dB to 21dB
± 0.75 @ >21dB to 41dB
± 1.25 @ >41dB to 81dB
|
± 0.5 @ 0dB to 21dB
± 0.75 @ >21dB to 41dB
± 1.25 @ >41 to 63.75dB |
| Power Handling, max (dBm) |
+ 23 |
+ 23
|
+ 23 |
| Switching Time, max (nsec) |
30 |
100 |
100 |
| Switch Rate, max (MHz) |
4.0
|
4.0 |
4.0 |
| Control Logic |
‘1’ = I.Loss
‘0’ = Att. |
‘1’ = I.Loss
‘0’ = Att. |
‘1’ = I.Loss
‘0’ = Att. |
| Control Input |
TRUE TTL GATE |
| Power Supply Requirements |
+5V ± 2% @ 300 mA
|
+5V ± 2% @ 400 mA
|
+5V ± 2% @ 450 mA |
| Environmental Conditions |
 |
|
Package Type
|

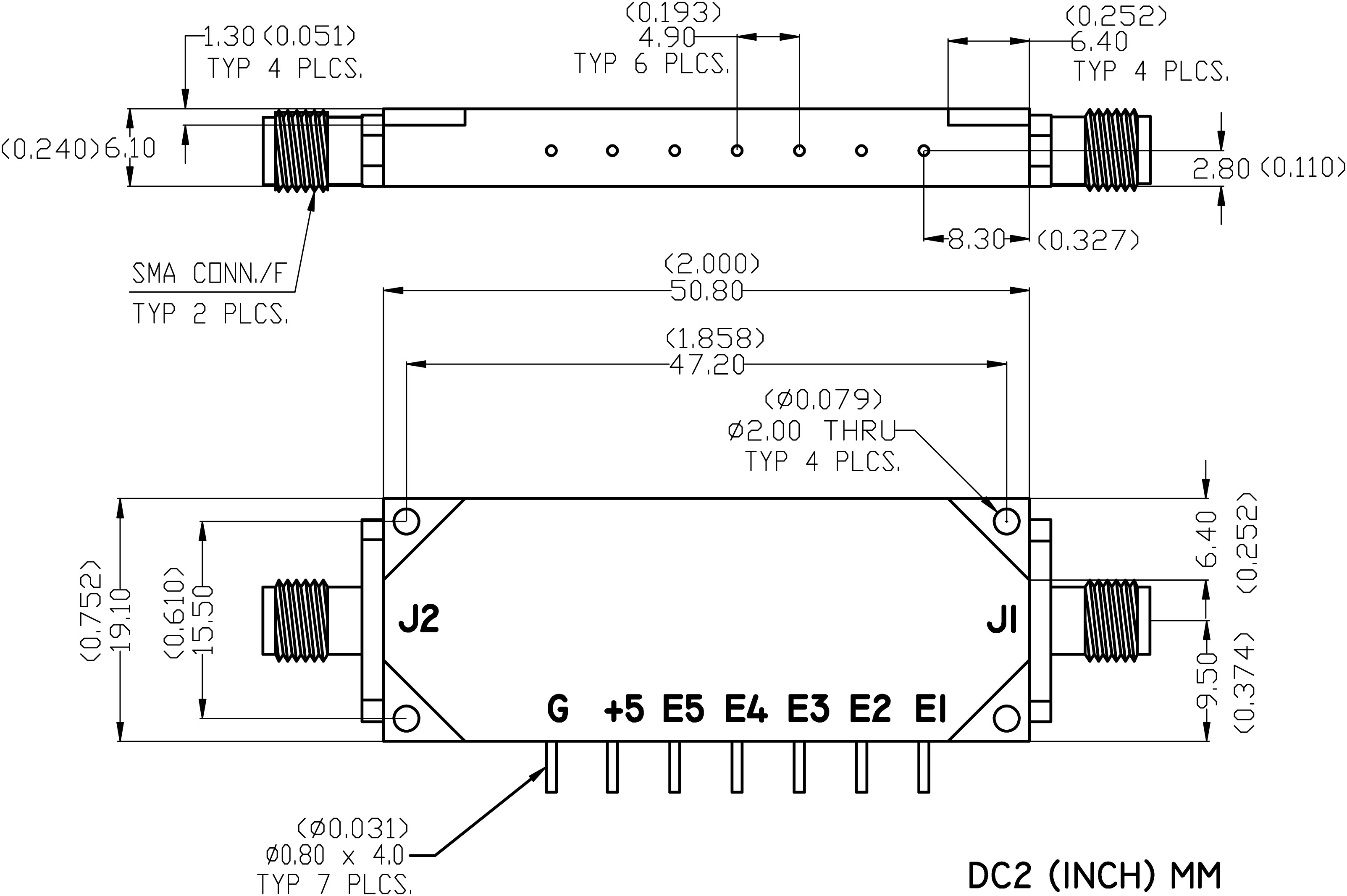

DC 2 |

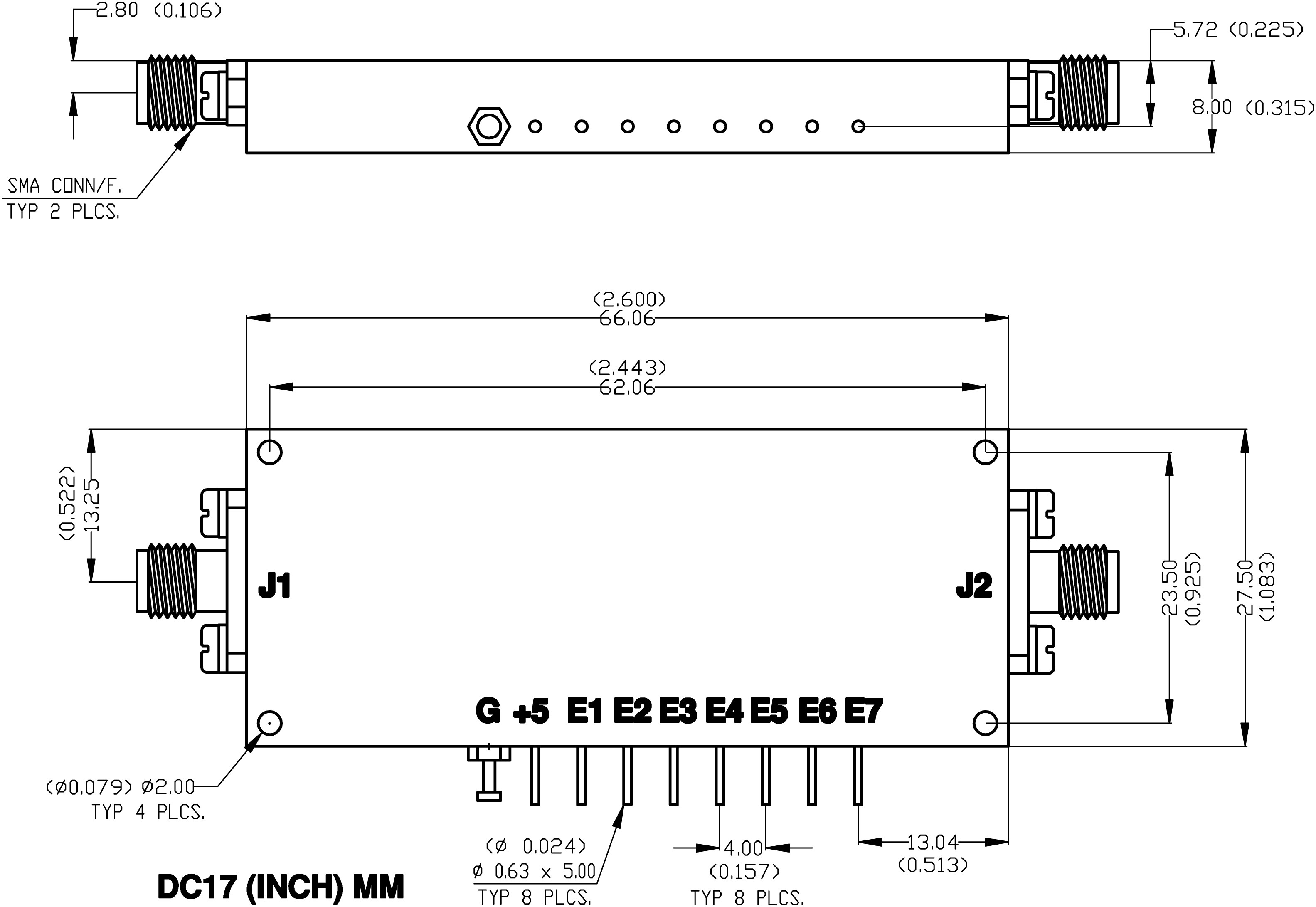

DC 17 |

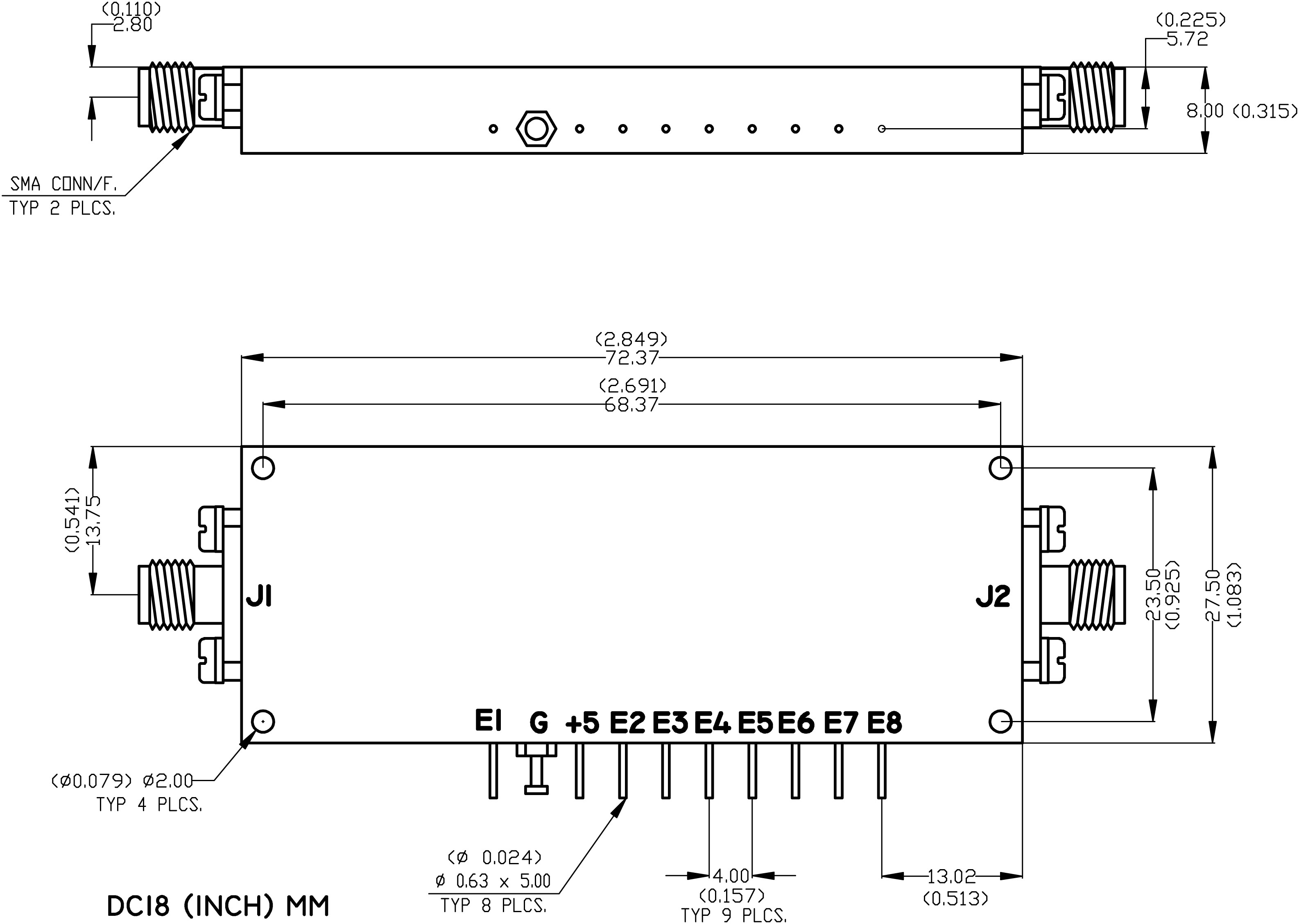

DC 18 |
