MODEL
|
SA-218-1-25 |
| Frequency Range, min (GHz) |
2-18(1)
|
| Attenuation Range, min (dB) |
25 (2) |
| Insertion Loss, max (dB) |
2.6 |
| VSWR, max |
2.0:1 |
| Number of Bits |
1 |
| LSB, max (dB) |
25 |
| Monotonicity |
Guaranteed |
|
Accuracy of Mean Attenuation, max (dB)
|
± 0.5 |
| Attenuation Flatness, max (dB) |
± 1.5 |
| Power Handling, max (dBm) |
+ 23 |
| Switching Time, max (nsec) |
30 |
| Rise and Fall Time, max (nsec) |
20 |
| Switching Rate, max (MHz) |
4.0
|
| Control Logic |
‘1’ = I.Loss
‘0’ = Att. |
| Control Input |
TRUE TTL GATE |
| Power Supply Requirements |
+5V ± 2% @ 60 mA
-15V ± 2% @ 60 mA
|
| Environmental Conditions |
 |
|

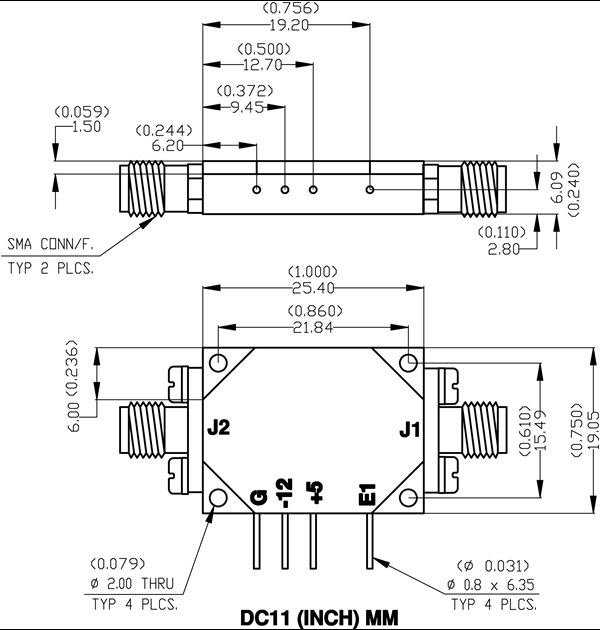

Package Type
|
DC 11 |
