KRATOS General Microwave offers a broad
range of High Power Amplifiers for both Military and Commercial applications
extending over the L-Band to Ku Band Frequency Range. Our SSPA's are based on
legacy LD-MOS, GaAs and WBG GaN technology. In this catalog, a wide range of custom
designed SSPAs is listed for various applications.
TYPICAL APPLICATIONS
1. RADAR Systems
2. ECM and COMJAM
3. Data-Links for Air Born Applications
4. Test Systems
5. Special applications
MAIN FEATURES
1. L-Band up to Ku-bands.
2. Power levels up to 1 Kw Pulsed.
3. Operating in Class A and AB.
4. Utilizing Solid state technology such as
LDMOS, GaAs, GaN on Sic and GaN MMICs.
5. Supports wide range of modulations such as
LFM, and various digital modulations.
6. Remote Control options of RS 232, RS422 or
ETHERNET.
PA PROTECTION and MONITORING
Special measures are implemented to Protect the Power Amplifiers from the following conditions and to monitor them
(at the system level):
1. Over Temperature Alarm and Protection.
2. Open/Short Load Alarm and Protection.
3. Forward Power Monitor.
4. Reflected Power Monitor.
CUSTOM PA PRODUCTS
Most of our PA products are for custom high performance applications.
For more information about our custom products go to:
Custom Microwave SSPA
Custom Power Amplifiers for Communication

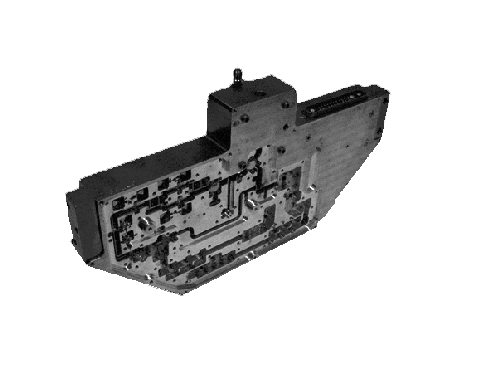

SOLID STATE POWER AMPLIFIER (SSPA)
The Solid State Power Amplifier (SSPA) product line was designed for use in the most demanding applications, including Airborne, Missile, Radars and Communications. Out SSPAs design is based on cutting edge GaN technology and various types of architectures. As a result, these SSPAs provide high efficiency, high power levels and small footprint. Our SSPAs are an alternatives to applications that currently are using Traveling Wave Tube (TWT) Amplifiers. All SSPAs are designed using the Power Summation concept (see Fig.1) which provides a graceful degradation capability not found in TWTs and critical to mission completion.
The SSPA product line supports both X and KU Band applications with bandwidth of 10% typically, offering peak power outputs up to 400 Watts. Successful SSPA designs have utilized Gallium Arsenide or Gallium Nitride power devices, depending upon which was better suited for the application. The flexibility of the SSPA design provides the ability to extend to adjacent frequency bands requiring only a short development time at a very low risk.

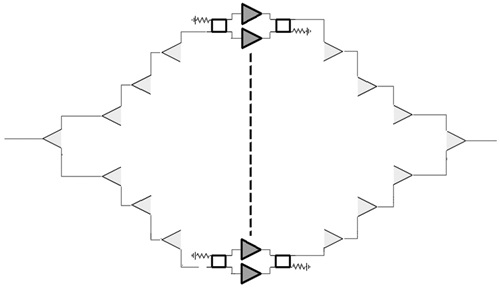

Fig. 1: Power Summation
