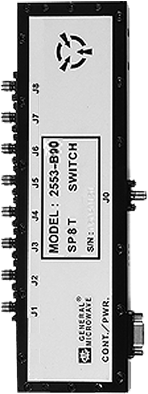

SP8T Model 2553 B90 Phase and Amplitude Matched Switch

Model 2553 series consists of SP8T-SP12T multi throw switches.
In this series, all output ports are in-line and the ports are phase and amplitude matched.

The 2553 series consists of the following multi throw switches:

     TYPE MODEL NO
  • SP8T 2553-B90
  • SP10T 2553-B39
  • SP12T 2553-B48

 Special Order Product Consult Factory Before Ordering

The Model 2553 series is equipped with an integrated driver that is powered by +5 and –12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.



PERFORMANCE SPECIFICATIONS

MODEL 2553-B90
  FREQUENCY RANGE (GHz)
1.0
to
18.0
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF
55
5.2
2.1:1
2.2:1
  • Wide Frequency range
  • Phase matched
  • Amplitude matched
  • All in-line output ports
  • Non-reflective
Phase and Amplitude Matched Switch Model 2553-B90


Amplitude Matching
(between any two output ports)........


1.2 dB, max.

Phase Matching
(between any two output ports)...............
30°, max.

Switching Time
  ON time ............................................................................. 700 nsec max.
  OFF time ............................................................................ 700 nsec max.

Power Handling Capability
  Without Performance Degradation.................................... 600 mW cw or peak
   Survival Power................................................................... 1.5W cw
Power Supply Requirements................................................
+5V ±5%, 350 mA max
-12V ±5%, 100 mA max
Control Characteristics
  Control Input Impedance................................................... Schottky TTL, two unit loads. (A unit load is 2 mA sink current and 50 μA source current.)
  Control Logic ..................................................................... Logic "0" (-0.3 to +0.8V) for "ON" state.
Logic "1" (+2.0 to +5.0V) for "OFF" state.
.
Operating Temperature........................................................ 0°C to +70°C
Storage Temperature........................................................... -20°C to +70°C

AVAILABLE OPTIONS

Option No.         Description
G12                    RoHS Compliant

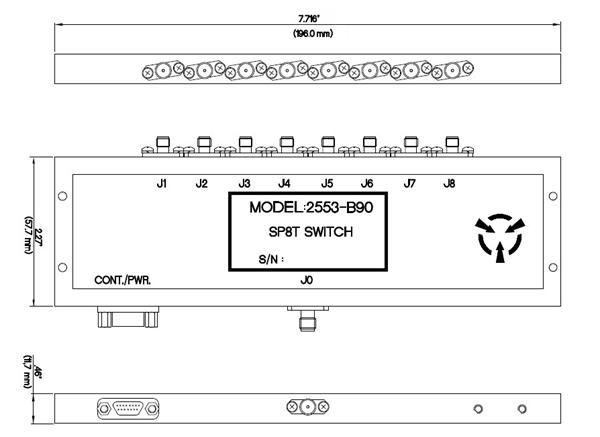

DIMENSIONS AND WEIGHTS



Weight 260 gr (9.2 oz)


PIN OUT
PIN FUNCTION
1 +5V
2 J2 Control
3 J4 Control
4 J6 Control
5 J8 Control
6 N.C.
7 N.C.
8 -12V
9 J1 Control
10 J3 Control
11 J5 Control
12 J7 Control
13 N.C.
14 N.C.
15 GND



Dimensions are stated in inches (mm). Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008
