Model KA 2970 LK Low Profile Absorptive SP10T Switch

MODEL KA-2060 SERIES

Model KA-2060-LK SP10T switch, is part of our product line of Low Profile, slim hermetically sealed switches. It is a Low Frequency SP10T switch.

The Model KA-2060 series is equipped with an integrated driver that is powered by +5 volt supply. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE SPECIFICATIONS

CHARACTERISTIC
 FREQUENCY RANGE
(GHz)
1.0
to
10.0
10.0
to
18.0
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF
70
4.1
2.0 :1
2.2 :1
 60
5.6
2.0 :1
2.2 :1
  • Frequency range: 20 to 2,000 MHz
  • Non-reflective
  • Internal Decoder
  • Hermetically Sealed
  • LowProfile
 Special Order Product Consult Factory Before Ordering

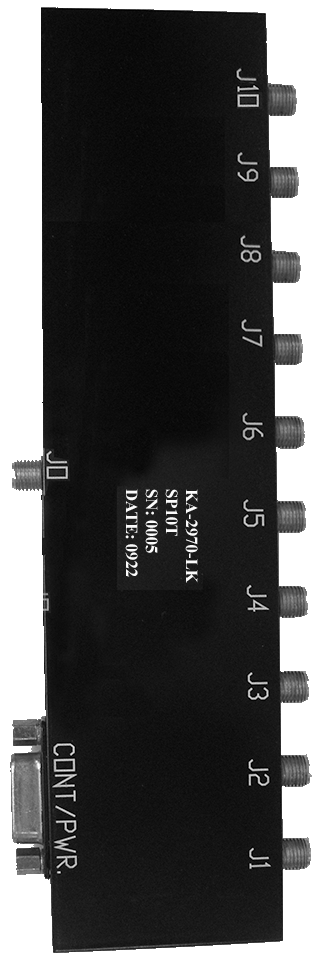

SP10T Switch Model KA-2970-LK
 Switching Time
         ON time........................... 500 nsec max.
        OFF time............................ 500 nsec max.
Switching Rate................0.1 MHz max

Power Handling Capability
Without Performance Degradation...................

500 mW cw or peak

Survival Power..............@25°C  1W cw


Power Supply Requirements

+5V ±2%, 300 mA max
–12V ±2%, 100 mA max


Control Characteristics

4 Bit decoder BCD
OPTION G09 - ENVIRONMENTAL RATINGS
Operating Temperature Range......................................

-40°C to +85°C

Non Operating Temperature Range...................................... –55°C to +125°C
Humidity..................................

MIL-STD-202F, Method 103B, Cond.  (96 hrs. at 95%)

Shock......................................

MIL-STD-202F, Method 213B, Cond. C (100G/ 6/msec)

Vibration................................. MIL-STD-202F, Method 204D, Cond. G (30g PEAK)
Altitude.................................... MIL-STD-202F, Method 105C, Cond. C (70,000 ft.)
Temp. Shock.......................... MIL-STD-202F, Method 107D, Cond. A, (5 cycles) -55°C to +125°C
 Seal ........................................ MIL-STD 202F, Method  112C, Cond. C 5x10-7
Salt Spray................................ MIL-STD 202F, Method 101D+EST., Cond. B

OPTIONS
  1. Other Frequency Bands
  2. Reflective
  3. Different Outline
  4. Video Leakage Requirements
  5. Environmental Rating G09

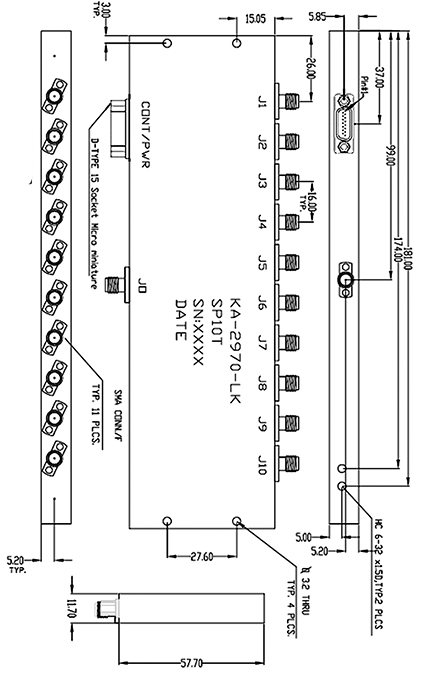

Low-Profile Absorptive SP10T Switch Model KA-2970-LK
Dimensional are in MM, Tolerances, unless otherwise indicated: .XXX ±.005




4 BIT DECODER
  E4 E3 E2
E1
 J1  0  0  0  1
 J2  0  0  1  0
 J3  0  0  1  1
 J4  0  1  0  0
 J5  0  1  0  1
 J6  0  1  1  0
 J7  0  1  1  1
 J8  1  0  0  0
 J9  1  0  0  1
 10  1  0  1  0

 ALL

OFF

 1  1  1  1




Dimensions are stated in inches (mm). Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
