TRANSMIT/RECEIVE  MODULES



FEATURES
  • Frequency Range: X Band
  • Power Output: 10W

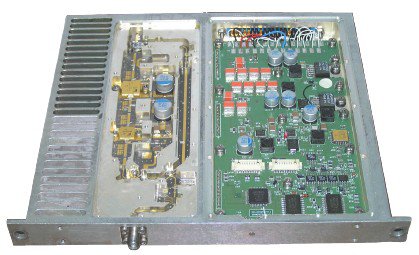

 X band, 10W Transmit/Receive modules
FEATURES
  • Frequency Range: 6 to 18 GHz
  • Power Output: 2 to 4W
  • Noise Figure: < 6.5 dB
  • Attenuation Control Range: 15 dB
  • Phase Control Range: 180º
  • Small Size

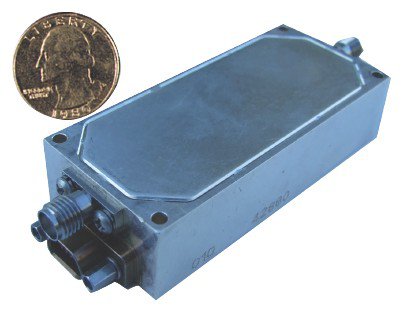

Small size Transmit/Receive module

FEATURES
  • Frequency Range: Ku Band
  • Power Output: 8W
  • Noise Figure: < 4 dB
  • Small Size
 Small size Ku Band Transmit/Receive module

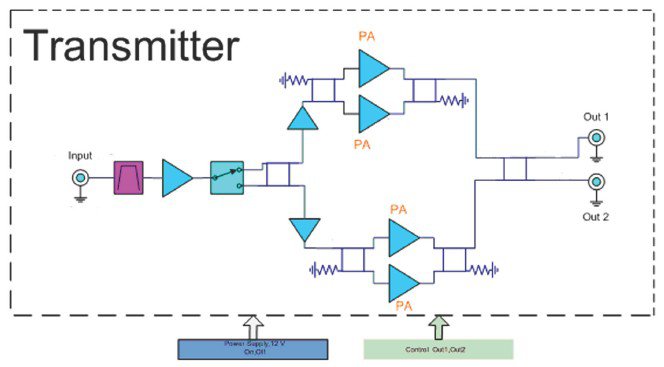

Transmitter functionality diagram



Receiver functionality diagram

MILLIMETER WAVE TRANSMIT/RECEIVE MODULES

 Millimeter Wave Transmit/Receive Module

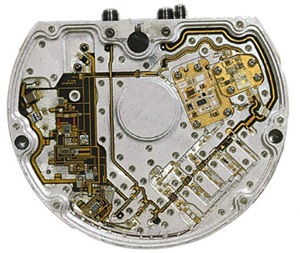

Millimeter Wave Transmitter Sub Assembly

FEATURES
  • Operating within Ka Frequency Band
  • High Efficiency transmitter
  • Five channel receiver

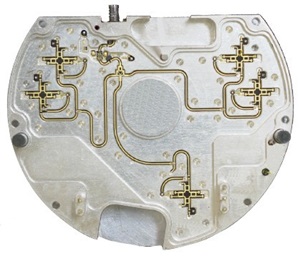

Millimeter Wave Receiver Sub Assembly
 Millimeter Wave Receiver Sub Assembly
