Switched Filter Banks

Kratos General Microwave provides various types of switched filter banks. These are customized products designed to meet specific customer requirements. The main features of this product line are:

  1. Fast Switching
  2. Low Loss
  3. Temperature Stability

The following filter technologies are being used:

  1. Cavity Combline
  2. Lumped Elements
  3. Printed Filters

The following are samples of switched filter banks supplied by us

SUB-Miniature SWITCHED FILTER BANK

FEATURES

  • Miniature Cavity 9 Channel
  • Very Thin unit: 9 mm, 0.3”

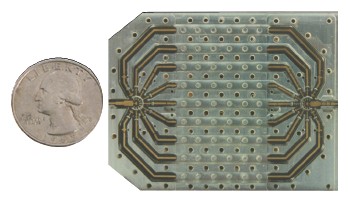

SUB-Miniature SWITCHED FILTER BANK
Model SBF-0518-7-LEM
VARIOUS TECHNOLOGIES IMPLEMENTED IN A SWITCHED FILTER BANK

FEATURES

  • Filters Implemented by: Lumped Elements and Printed filters
  • No. of Channels: 7
  • Frequency range: 0.5 to 18 GHz

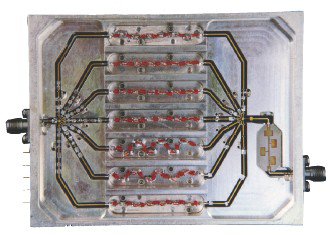

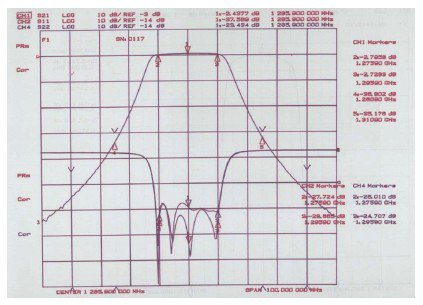

Switched Filter Bank Model SBF-0518-7-LEM  Various Technologies Implemented in a Switched Filter Bank
CH
Pass Band
(GHz)
 Insertion
Loss
(dB)
 Rejection (GHz)
     9.0  30 dB  45 dB 55 dB
60 dB
 1  0.472 to 0.808  9.0  14 to 20    1 to 14  DC to 0.22
 2  0.728 to 1.320  9.0  14 to 20    1.5 to 14  DC to 0.4
 3  1.240 to 2.088  9.0  16 to 20    2.4 to 16  DC to 0.07
 4  10.456 to 18.088  9.0    21 to 30  DC to 8.4
 5  2.000 to 3.500  9.0    21 to 30  DC to 1.4  4 to 10
 6  3.400 to 6.100  9.0    DC to 2.9    6.8 to 20
 7  5.950 to 10.550  9.0      DC to 4.7  12 to 21
Model SBF-620-4-MEC
CAVITY TYPE SWITCHED FILTER BANK


FEATURES

  • Filter implemented by: Cavity
  • High Out of Band Rejection
  • High Isolation

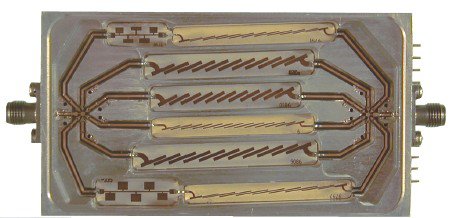

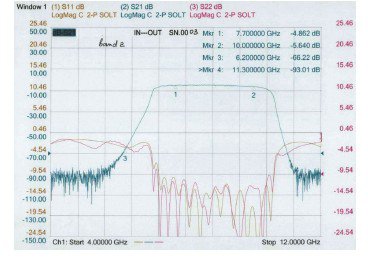

 Printed Type Switched Filter Bank - Switched Filter Bank - Kratos General Microwave product catalog
Operational Chart for Printed Type Switched Filter Bank
CH
Pass Band
(GHz)
Insertion
Loss (dB)
max.
Min. Rejection
(GHz)
 50 dB  65 dB  50 dB
 1 5.95 to 9.05
7.5 2.2 to 5.2
 13.4 to 16.4
11.2
 2 8.95 to 12.85
7.5  1.6 to 5.4 16.0 to 19.8
14.4
 3 12.75 to 16.05
7.5 1.6 to 4.8
6.4 to 9.6
11.2
 4 15.95 to 20.05
7.5 1.6 to 3.6

8.8 to 12.8

14.4
