SP10T Model 2553 B39 Phase and Amplitude Matched Switch

Model 2553 series consists of SP8T-SP12T multi throw switches. In this series, all output ports are in-line and the ports are phase and amplitude matched.

The 2553 series consists of the following multi throw switches:

      TYPE MODEL NO.

  • SP8T 2553-B90
  • SP10T 2553-B39
  • SP12T 2553-B48

The Model 2553 series is equipped with an integrated driver that is powered by +5 and –12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

                                                                                                                                                                                                                 Special Order Product Consult Factory Before Ordering

PERFORMANCE SPECIFICATIONS

MODEL 2553-B39
  FREQUENCY RANGE (GHz)
6.0
to
12.0
 12.0
to
18.0
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF
70
4.3
2.0:1
2.2:1
 70
5.6
2.0:1
2.2:1
  • Wide Frequency range
  • Phase matched
  • Amplitude matched
  • All in-line output ports
  • Non-reflective


Amplitude Matching
(between any two output ports)......

1.2 dB, max.
Phase Matching (between any two output ports).............
30°, max.
Switching Time
  ON time ........................................................................... 700 nsec max.
  OFF time .......................................................................... 700 nsec max.
Power Handling Capability
  Without Performance Degradation................................. 600 mW cw or peak
   Survival Power................................................................. 1.5W cw
Power Supply Requirements............................................. +5V ±5%, 350 mA max
-12V ±5%, 100 mA max
Operating Temperature..................................................... 0°C to +70°C
Storage Temperature.........................................................
 -20°C to +70°C
Control Characteristics
  Control Input Impedance................................................ Schottky TTL, two unit loads. (A unit load is 2 mA sink current and 50 μA source current.)
  Control Logic................................................................... Logic "0" (-0.3 to +0.8V) for "ON" state.
Logic "1" (+2.0 to +5.0V) for "OFF" state.

AVAILABLE OPTIONS
OPTION No.          DESCRIPTION
G12                       RoHS Compliant

DIMENSIONS AND WEIGHTS

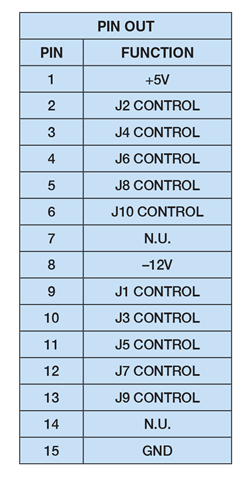

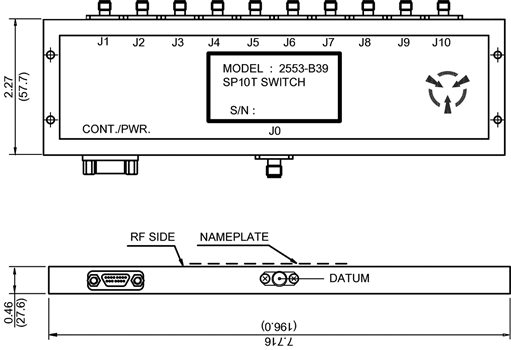

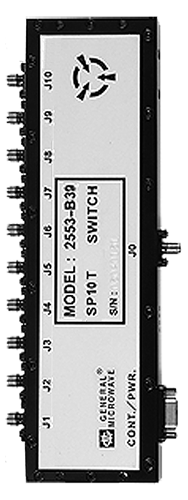

MODEL 2553-B39 SP10T SWITCH




Dimensions are stated in inches (mm). Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
