Model HPS-9257 High Power SPDT Switch

Application Notes for RF Switches

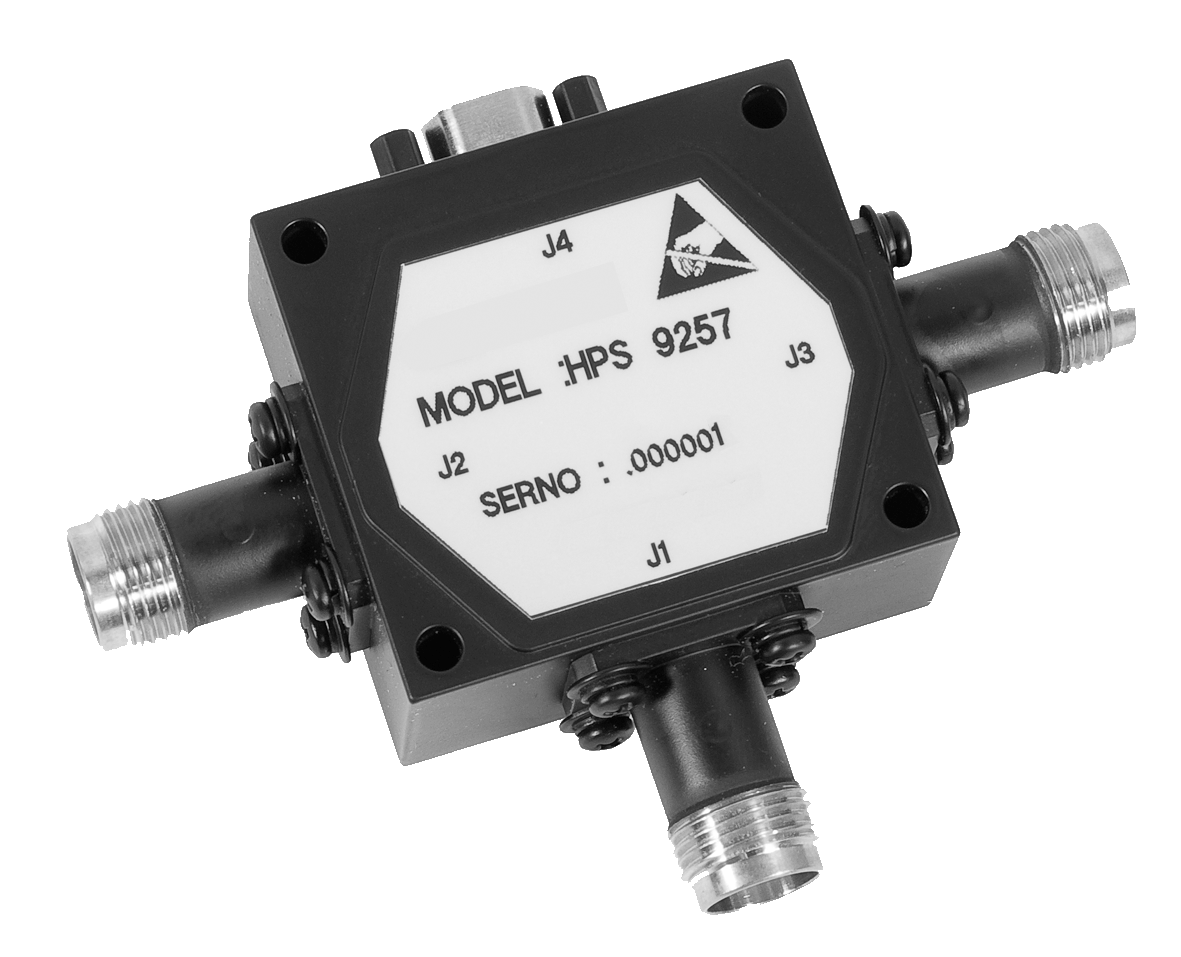

HIGH POWER SWITCH Model 9257

Kratos General Microwave has developed model HPS-9257 wide frequency band High Power SP2T switch.
This switch operates in the entire frequency range of 2.5 GHz to 7.5 GHz.

This switch can be supplied in a carrier configuration or as a packaged switch.

PERFORMANCE SPECIFICATIONS

PARAMETER


 Frequency Range (GHz) 2.5 to 7.5
 Power Handling (W)
200 CW
 Min. Isolation (dB)  20
 Max. Insertion loss (dB) 1.2
 VSWR ON 1.9:1
  • Reflective Wide Band
    2.5 to 7.5 GHz
  • Low Insertion loss
  • Cold Switching
  • High Speed
Special Order Product Consult Factory Before Ordering
Model HPS-9257 High Power SPDT Switch
           Switch Model HPS-9257
Switching Characteristics
   ON time.................................. 3.5 µsec max.
   OFF time................................ 3.5 µsec max.

Power Supply Requirements
(For one port ON)

MODEL
 +5V ± 5% Negative Voltage
   mA  V  mA
 HPS 9257  250  -50  10



Control Characteristics
Control Input Impedance.............................  TTL, low power Schottky, one unit load. (A unit load is 0.8 mA sink current and 40 µA source current.)
Control Logic................................................
  Logic “0” (–0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0 V) for port OFF.

AVAILABLE OPTIONS
1. Carrier drop-in configuration
2. Packaged configuration



ENVIRONMENTAL RATINGS

Temperature Range
     Operating.......................
  –40°C to +105°C
     Non Operating...............  –65°C to +125°C
 Humidity............................  MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
 Shock.................................  MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
 Vibration............................  MIL-STD-202F, Method 204D, Cond. B (.06” double amplitude or 15G, whichever is less)
 Altitude..............................  MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)

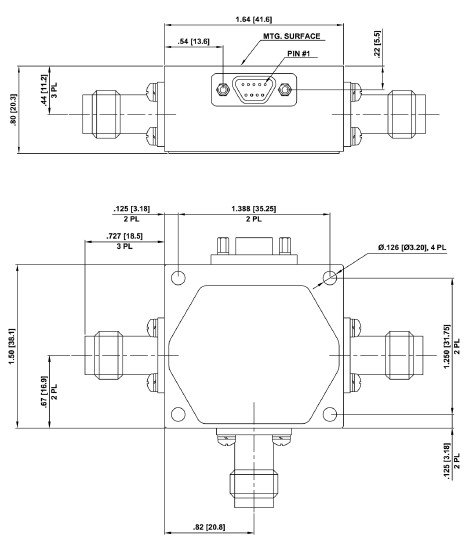

DIMENSIONS AND WEIGHT - FOR PACKAGED CONFIGURATION
Dimensions and Weight for Packaged Configuration, Model HPS-9257
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005



The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
