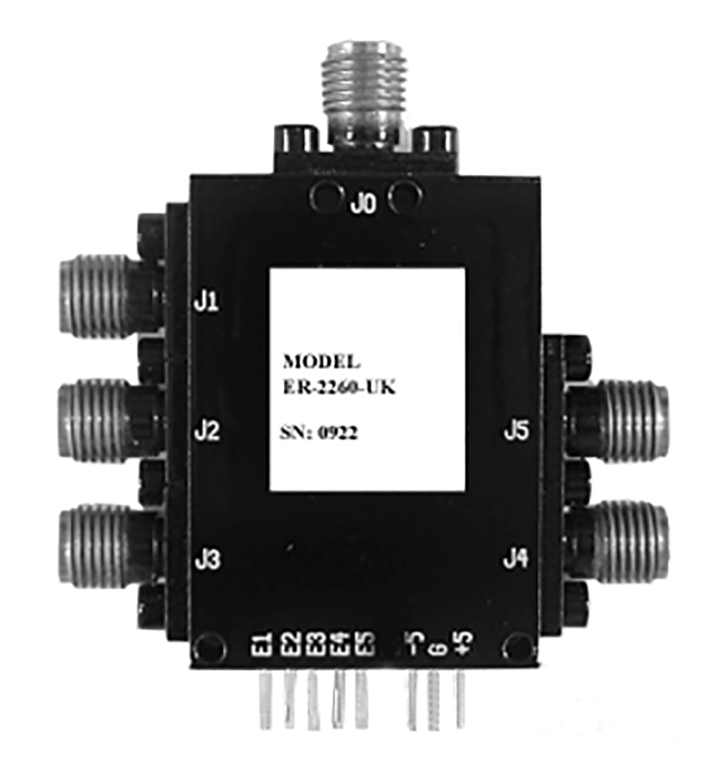

Model ER-2260-UK Hermetically Sealed Low Profile SP5T Switch

Application Notes for RF Switches
The Model ER-2260-UK is a hermetically sealed, low cost high speed, SP5T PIN diode switch with integrated driver. The switch operates over the instantaneous frequency range of 0.5 to 18 GHz, with an option of 0.5 to 20 GHz. This switch can be ordered in the basic catalog configuration as specified below, or in a much thinner outline or as a drop-in switch.

PERFORMANCE CHARACTERISTICS

 MODEL NO.  CHARACTERISTIC                     FREQUENCY (GHz)
  0.5-2    2-4
  4-8  8-12
 12-18
 ER-2260-UK Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)
   70
   2.0
 1.8:1
 70
 2.0
1.9:1
 70
 2.5
2.0:1
 65
 3.0
2.0:1
 60
 3.6
2.0:1
  • Frequency range: 0.5 to 18 GHz
  • Low VSWR and Insertion loss
  • Isolation: up to 70 dB
  • Small size, light weight
  • With Integrated Driver
  • Low Video Leakage
  • Removable Connectors
Model 1744 SP16T PIN Diode Switch Dimensions and Weight for Model 1744 SP16T PIN Diode Switch Economically Hermetically Sealed High-Speed SPST Switch Model E9114H Dimensions and Weight for Model E9114H Hermetically Sealed Switch Hermetically Sealed High-Speed SPDT Switch Model E9120H Model E9120H and E9120HT SPDT Switch Dimensions and Weights Reflective multi-throw switch schematic diagram Non-reflective multi-throw schematic diagram Model H9120HT Hermetically Sealed SPDT Switch Dimensions and Weights, Model H9120H, HT Model H9140HT Hermetically Sealed SP4T Switch Dimensions and Weights, Model H9140H, HT Hermetically Sealed High-Speed SP3T Switch Model E9130H Dimensions and Weight for Hermetically Sealed SP3T Switches Hermetically Sealed High-Speed SP4T Switch Model E9140H Dimensions and Weight for Hermetically Sealed SP4T Switches Hermetically Sealed Low Profile SP5T Switch Model ER-2260-UK

Switching Time
ON time...........................  20 nsec max.
 OFF time............................  20 nsec max.

Power Handling Capability
Without Performance Degradation....................... 200 mW cw or peak
Survival Power.............. 1W CW, 20W peak (1/µsec max. pulse width with 5% duty cycle). Derate Linearly to 50% at +95°C
Control logic ............
 Logic “0” (0 to +0.8V) = Insertion Loss  Logic “1” (+2.0 to +5.5V) = Isolation









Power Supply Requirements +5V ±0.5V (mA), max   ...............................    140

-12V ±10% (mA), max  ..............................      90



ENVIRONMENTAL RATINGS OPTION G09
OperatingTemperature Range........................

–54°C to +95°C
Humidity......................................................

MIL-STD-202F, Method 103B, Cond. B
Shock.........................................................

MIL-STD-202F, Method 213B, Cond. B
Vibration..................................................... MIL-STD-202F, Method 204D, Cond. B (.06" double amplitude or 15G, whichever is less)
Altitude....................................................... MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Thermal Shock............................................. MIL-STD-202F, Method 107D, Cond. A, 5 cycles

AVAILABLE OPTIONS

  • TTL control logic (inverting or non-inverting)
  • BCD Decoder driver
  • Other DC Voltage supply
  • Very Low Video Leakage
  • Over Voltage Protection
  • Non-Reflective
  • Drop-In package
  • Extremely Low Profile, thickness of 6.1mm (0.24”)
  • Meeting option G09 environmental specifications

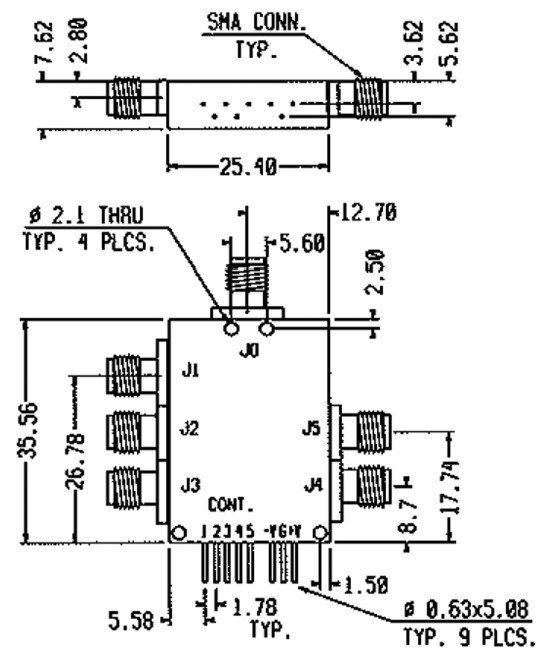

DIMENTIONS AND WEIGHTS

Model ER-2260-UK (SP5T)
Dimensions and Weight for SP5T Switch Model ER-2260-UK

Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
