Medium Power SP4T Switches Series SW-1000-00

Application Notes for RF Switches

Kratos General Microwave has developed series SW-1000-00 Medium Power SP4T switches for various applications in the frequency range of 1.0 GHz to 2.1 GHz in various sub-bands for various applications.

PERFORMANCE CHARACTERISTICS

   MODEL
PARAMETER
SW-1193-00
 SW-1996-00
Frequency Range (GHz) min.
1.0 to 1.3 1.9 to 2.1
Power Handling
   CW (W) max.  65  50
Isolation (dB) min.  30  30
Insertion loss (dB) max. 1.0  1.3
VSWR ON
1.5:1
1.4:1
  • Medium Power
  • Low Insertion loss
  • High Isolation
  • Non Reflective
 Special Order Product Consult Factory Before Ordering

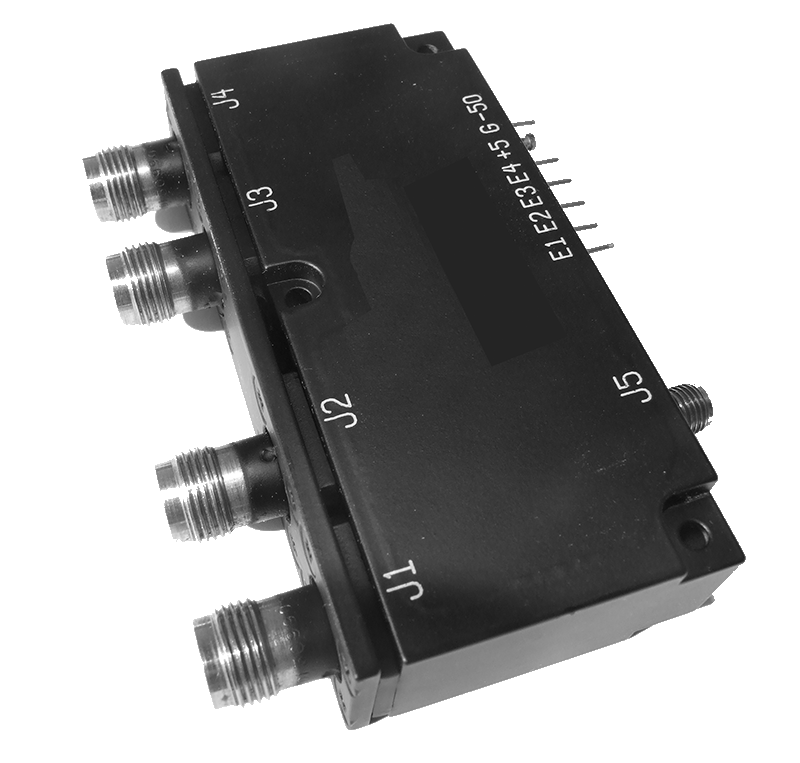

Medium Power SP4T Switches Series SW-1000-00
HIGH POWER SP4T SWITCH

Power Supply Requirements
(For one port ON)

MODEL
+5V ± 5% Negative Voltage
  mA V
 mA
  SW-1193-00  250  -50  60
 SW-1996-00 150 -28  50

Switching Characteristics
Model SW-1193-00
  Cold Switching
    On Off Time ....................10 µsec max
    Switching Rate.................2 kHz max.

Model SW-1996-00
  Cold Switching
    On Off Time......................5 µsec max.
    Switching Rate.................10 kHz max.


Control Characteristics

Control Input Impedance......TTL, low power Schottky, one unit load. (A unit load is 0.8 mA sink current and 40 µA source current.)
Control Logic ........................Logic “0” (–0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0 V) for port OFF..

AVAILABLE OPTIONS
1. Different Operating temperatures
2. Higher Switching Speeds
3. Inverse Control Logic
4. SMC or SMA output Connectors






ENVIRONMENTAL RATINGS
Operating Temperature.........                                 -30°C to +55°C
Storage Temperature............                                 -60°C to +120°C
Humidity................................. MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock....................................... MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration................................. MIL-STD-202F, Method 204D, Cond. B (.06” double amplitude or 15G, whichever is less)
Altitude.................................. MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)


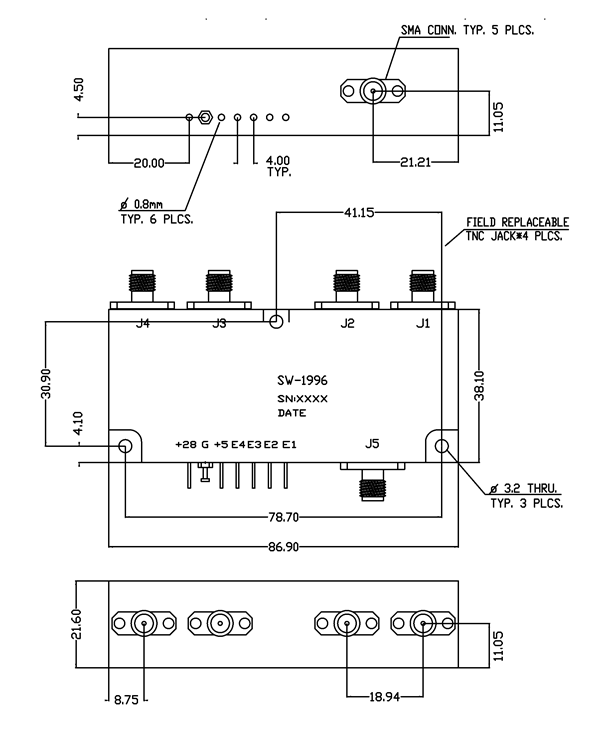

DIMENSIONS AND WEIGHT

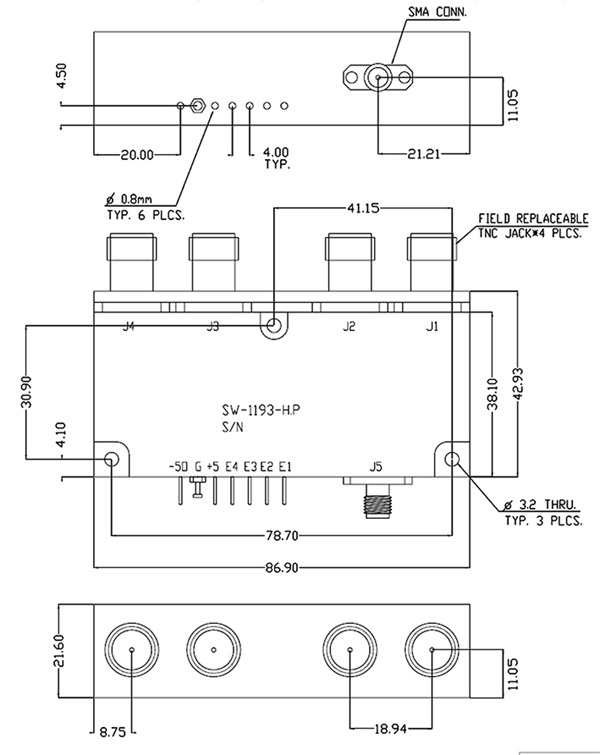

Dimensions and Weight, Model SW-1193-00 Medium Power Switch

Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
