High Power SPDT Switches Series HPS 9000


Application Notes for RF Switches

Kratos General Microwave has developed series HPS900 line of High Power SPDT switches for various applications. These switches operate in the IFF and L bands, providing Power handling capability of up to 1kW in cold switching. Typically these switches are assembled in a multi-switch assembly. The number of switches in one sub-assembly depends upon the specific architecture of the system. The control and supply voltages to the switch sub-assembly is supplied via a multi-pin connector.

PERFORMANCE CHARACTERISTICS

  MODEL
PARAMETER
 HPS 9201
Power Handling (W), 100 µsec pulse width, 10% duty cycle
                                  500
Frequency Range                                   L Band
Frequency Bandwidth                                   10%
Min. Isolation (dB)                                   40
Max. Insertion loss (dB)                                   1.2
 VSWR ON and OFF                                  1.4:1
  • High Power
  • Low Insertion loss
  • High Speed
  • Cold Switching
  • Non-reflective
 Special Order Product Consult Factory Before Ordering

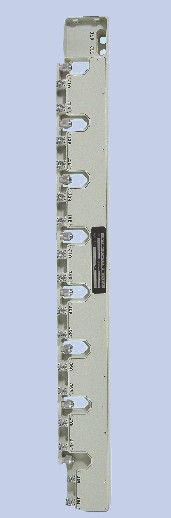

High Power SPDT Switches Model HPS-9201
Switch Model HPS-9201
(8 SWITCHES IN A SUB-ASSEMBLY)
Switching Characteristics
ON Time ................................. 3.5 µsec max.
OFF Time ................................3.5 µsec max.

Power Supply Requirements
(For one port ON)

+5V ± 5% -60V
270 mA  40 mA










Control Characteristics
Control Input Impedance......... TTL, low power Schottky, one unit load. (A unit load is 0.8 mA sink current and 40 µA source current.)
Control Logic ......................... Logic “0” (–0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0 V) for port OFF.


AVAILABLE OPTIONS*
1. Operating Frequency Range
2. Mechanical Configuration
* Requires Minimum Order Buy


ENVIRONMENTAL RATINGS

Temperature Range
    Operating..................... –55°C to +70°C
    Non Operating............. –65°C to +125°C
Humidity............................. MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock................................. MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration........................... MIL-STD-202F, Method 204D, Cond. B (.06” double amplitude or 15G, whichever is less)
Altitude............................. MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)

DIMENSIONS AND WEIGHT

These High Power Switches are normally incorporated in systems as a sub-assembly of two or more switches. For this reason specific outline and weight information can be provided per specific requirement.


The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
