0.1 to 40 GHz SPDT RF SWITCH MODEL F9025

Application Notes for RF Switches

General Microwave introduces the Model F9025 ultrabroadband, Reflective SPDT Switch operating over a frequency range of 100 MHz to 40 GHz. Applications include ultra-wide band Test equipment, Receiving and EW Systems
  • 0.1 to 40 GHz FREQUENCY RANGE
  • LOW VSWR and INSERTION LOSS
 F9025

PERFORMANCE CHARACTERISTICS

  MODEL NO.   CHARACTERISTIC FREQUENCY (GHz)
0.1-4 4-18 18-26.5 26.5-40
  F9025   Min. Isolation (dB)
  Max. Insertion Loss (dB)
  Max. VSWR (ON)		 70
2.6
2.0		 60
3.2
2.3		 55
3.8
2.5		 40
5.3
2.5
 SWITCHING CHARACTERISTIC
   Switching Time ....................250 nsec max.

 POWER HANDLING CAPABILITY
   Without Performance
      Degradation .....................200 mW cw or pulse

 POWER SUPPLY REQUIREMENTS
      +5V .................................±2%, 75 mA max.
      -15V ................................±5%, 50 mA max.


CONTROL CHARACTERISTICS
Control Input Impedance  .............


TTL, advanced Schottky, one unit load. (A unit load is 0.6 mA sink current and 20 μA source current.)
Control Logic.  ...............................


 Logic "0" (-0.3 to +0.8V) for port ON and logic "1" (+2.0 to +5.0V) for port OFF.

 OPTION (G09) ENVIRONMENTAL RATINGS
Operating Temperature Range


Operating Temperature Range -54°C to +95°C
Non-Operating Temperature Range.. -65°C to +125°C
Humidity............................................ MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock................................................. MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration............................................. MIL-STD-202F, Method 204D, Cond. B (.06" double
amplitude or 15G, whichever is less)
Altitude................................................ MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling...................................... MIL-STD-202F, Method 107D, Cond. A, 5 cycles


  AVAILABLE OPTIONS
Option No. Description
 G09  Guaranteed to meet Environmental Ratings
 G12  Rohs Compliant
 G18  REACH Compliant

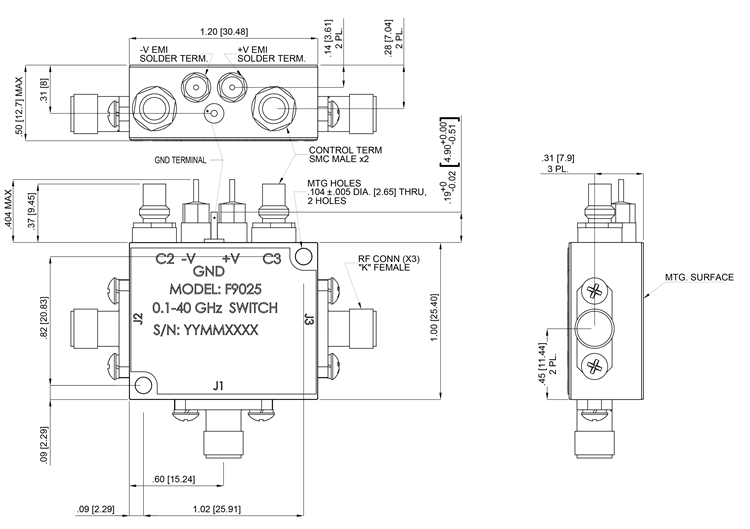

DIMENSIONS AND WEIGHTS



Weight apprtox. 20 gr (0.7 Oz)
Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005



The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
