Series V6020-95 Miniaturized Voltage Controlled Oscillators

Application Notes for Microwave Oscillators

Kratos General Microwave has developed a family of high-speed, miniaturized VCOs covering the 2-6 GHz frequency range. These VCOs have been utilized in airborne EW applications, as well as in ground-based simulators. The specifications are summarized below.

  • Input Frequency within 2 to 20 GHz
  • Output Frequency 2 to 40 GHz
    • Optional 0.5 to 40 GHz
    • Optional 0.5 to 20 GHz
  • Low Cost
  • Airborne
  • Compact Size
Miniaturized Voltage Controlled Oscillator Series V6020-95
Series V6020-95X Miniaturized VCO

MINIATURIZED VCO SPECIFICATIONS

  MODEL

PARAMETER



V6020-

952C/J

V6020-

953C/J

V6020-

954C/J

V6020-

955C/J

FREQENCY RANGE (GHz) 2.0-2.8 2.8-3.8 3.8-4.9 4.9-6-1
FREQENCY SETTLING(1), max (MHz)
    within 1 μsec
±1
RF POWER
    Output, min (dBm)
+13
   Variation, max (dB) ±2
PHASE NOISE, max (dBc/Hz)
    @ 100 kHz offset
-105 -100
HARMONICS, max (dBc) -20
SPURIOUS, max (dBc) -60
TEMPERATURE STABILITY, typ (MHz/°C) -0.6 -1.0
PULLING VSWR 3:1 typ (MHz) 2 3 5
PUSHING, typ (MHz/V) 6 10
POWER SUPPLY REQUIREMENT
    Voltage (Vdc)
+12 ±0.5
   Current, max (mA) 125
   Tuning (Vdc) 0 to +28
TUNING PORT CAPACITANCE, max (pF) 50
ENVIRONMENTAL
    Operating temperature (°C)
0 to +85
    Storage temperature (°C) -54 to +125
MECHANICAL DIMENSIONS
    Inches
0.97 x 0.50 x 0.20
    Millimeters 24,6 x 12,7 x 5,1

DIMENSIONS AND WEIGHTS

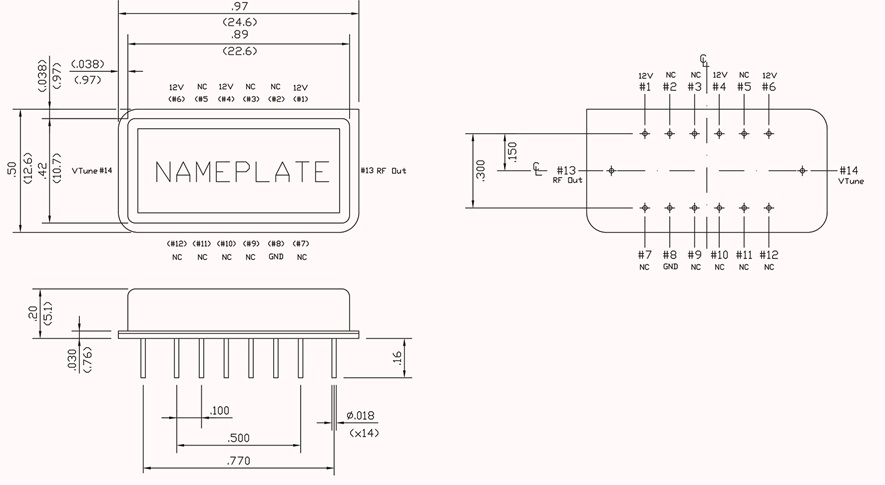

MODEL V6020-95XC

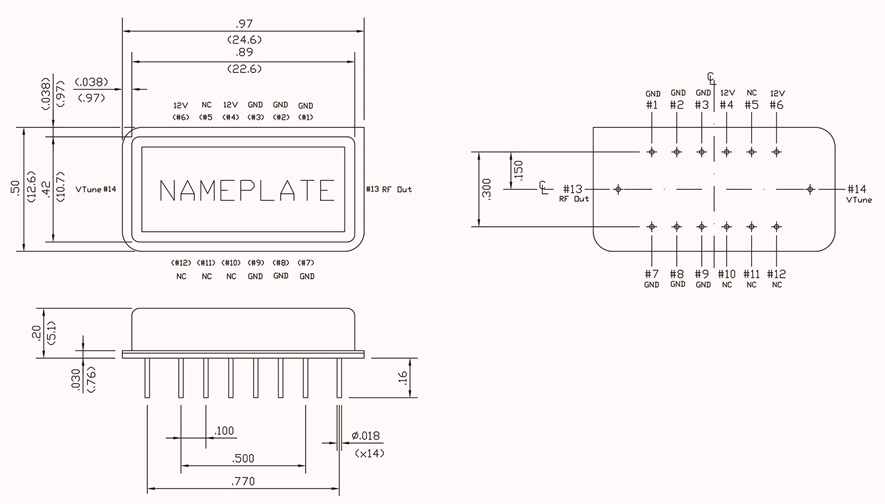

MODEL V6020-95XJ

Dimensional Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005




The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
