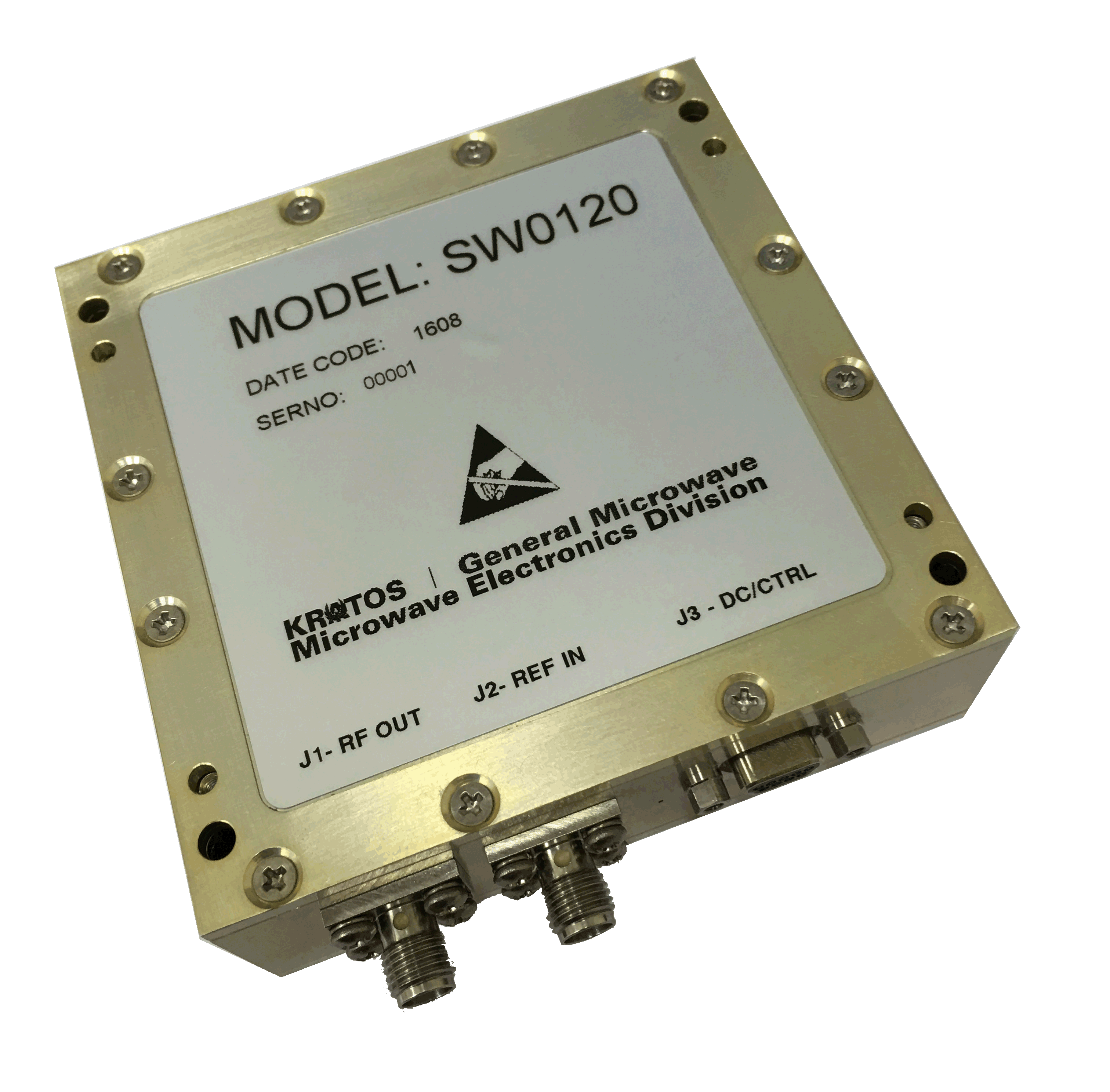

Series SW Compact Low Cost Broad Band Synthesizer

Applications Notes for RF oscillators Other Microwave Synthesizers
Kratos General Microwave introduces the Series SW Compact, Wide Band, Fast (50 usecs), Indirect Synthesizers offering exceptionally high performance at a low cost.
Each synthesizer is supplied with an internal reference crystal oscillator. The customer has the option of connecting an external reference crystal oscillator.


APPLICATIONS
The Series SW synthesizer has been designed to be used in applications where small size, low cost and wideband operation are important requirements. It can be used as a microwave source in Portable Test Equipment, as microwave source in Built In Test (BIT) subassembly or in a broad frequency range electronic system. For military applications, this synthesizer requires option G09 to comply with Military Standards. The specific environmental MIL STD requirements as well as the EMI/RFI specifications should be provided by the customer.
  • Small Size: 3 x 3 x 1"
  • Wide Frequency Range: 0.5 to 20 GHz
  • High Resolution: 100 Hz
  • Low Cost
  • Internal Reference Crystal Oscillator
Compact Low Cost Broad Band Synthesizer Series SW

PRODUCT SPECIFICATIONS

  SPECIFICATION
PARAMETER MODEL SW0580 (1) MODEL  SW0120   MODEL  SW0220     MODEL SW0618
1 FREQUENCY RANGE (GHz) (2)  0.5 to 8* 1.25 to 20 2 to 20 6 to 18
2 ACCURACY at 25oC (ppm) ±2
3 FREQUENCY AGING, (ppm/Year)   ±2 First year.    ±1 per year, after first year
4 FREQUENCY STABILITY over temperature, (ppm)  ±1
5 OUTPUT POWER (dBm) (2) +7
5.1 P.T.P VARIATION over Temp. & Freq. (dB) 6
6 SETTLING TIME, max (μsec)(3) 120 ± 15
7 SSB PHASE NOISE, max (dBc/Hz)
7.1 @ 100 Hz Offset -65  -57  -57 -57
7.2 @ 1 KHz Offset -86 -78 -78 -78
7.3 @ 10 KHz Offset -93  -87  -87  -87
7.4 @ 100 KHz Offset  -93 -87 -87  -87
7.5 @ 1 MHz Offset  -93 -87 -87 -87
7.6 @ 10 MHz Offset  -130 -125 -125 -125
8 HARMONICS, typ. (dBc) -20
9 SUB-HARMONICS, max (dBc) NA
10 SPURIOUS, max (dBc) -65 -60 -60 -60
11 CONTROL Serial Control
12 FREQ. STEP SIZE, nominal LSB (KHz) (2) 0.1
13 REFERENCE OSCILLATOR, External(4)
13.1 INPUT FREQUENCY (MHz)    100
13.2    INPUT POWER (dBm)  0 ±2
14 SUPPLY VOLTAGE
14.1 (VDC, mA) +12 ±5%, @700
14.2 (VDC, mA) -12 ±5%, @250
15   DIMENSIONS, Inches (mm)  ~3 x 3 x 1 (76.2 x 76.2 x 25.4)
16 RF IN/OUT CONNECTORS SMA Female
17 CONTROL CONNECTOR MDM
18 OPERATING TEMPERATURE, (°C) -40 to +85
19 STORAGE TEMPERATURE, (°C) -65 to +125
20 ENVIRONMENTAL CONDITIONS Airborne and Naval
21 LOCK DETECT OUTPUT  TTL High


(1) Special Order product
(2) Other parameters are optional
(3) For 50 (μsec) settling time, order option G17.
(4) Spec is for internal reference oscillator. The unit can be configured to work with the internal reference or with an external reference.

 AVAILABLE OPTIONS
Option No.   Description
 G09                 Guaranteed to meet Environmental
                          Ratings

 G17                 Settling time - 50 μsec max.


   J3 - Pin Assignment



PIN
No.

FUNCTION
1  VIN positive +12V ±10%
 2  SDI (Serial Com.)
 SCLK (Serial Com.)
 STROBE (Serial Com.)
 Lock Detect
 VIN negative -12V ±10%
 For Factory Use - Do not connect
 8  For Factory Use - Do not connect9
9  GND

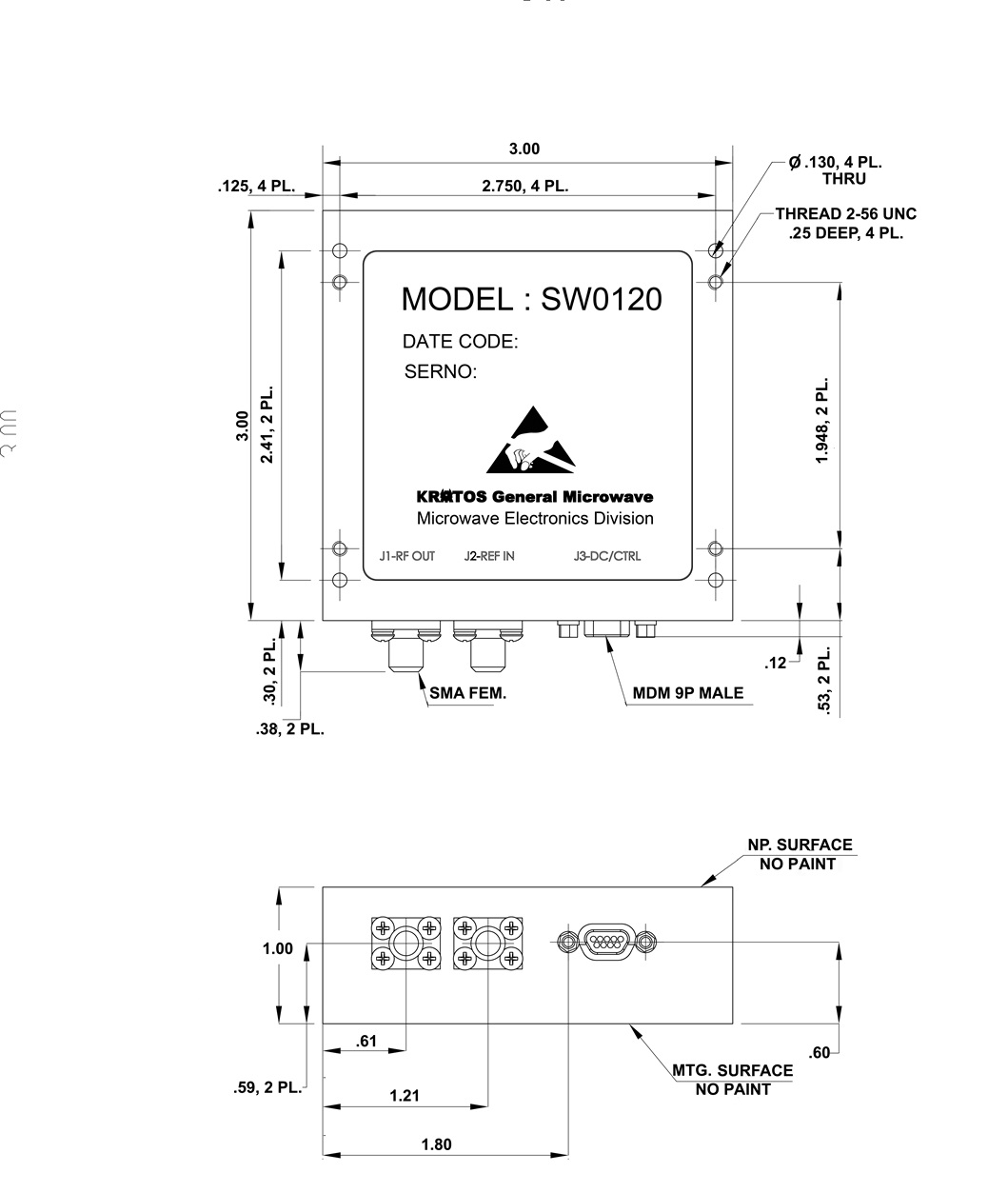

DIMENSIONS AND WEIGHT
Weight (Approx.): 250 Gr. (8.8 Oz)
DIMENSIONS IN INCHES (mm)
Dimensional Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008





The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
