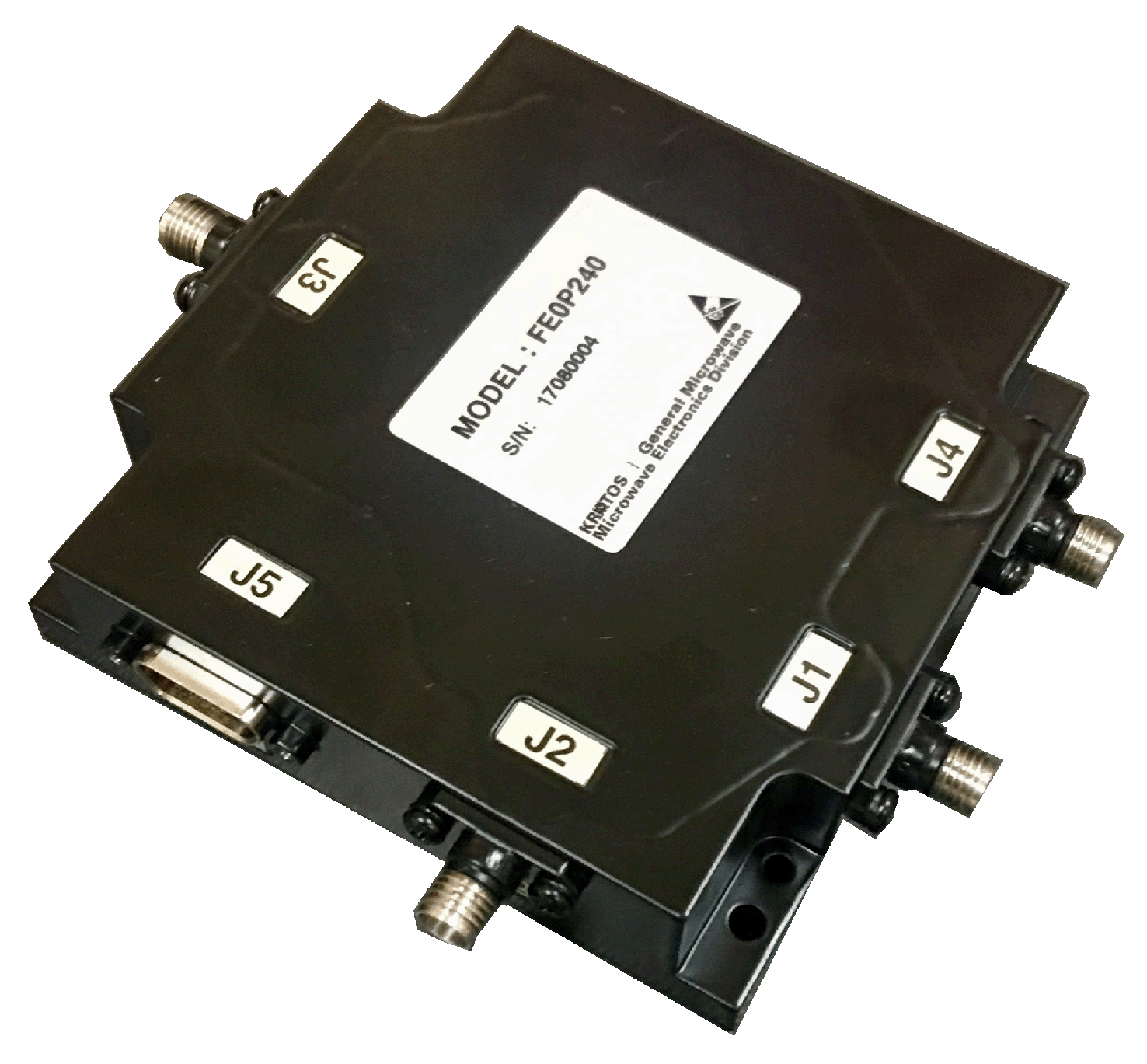

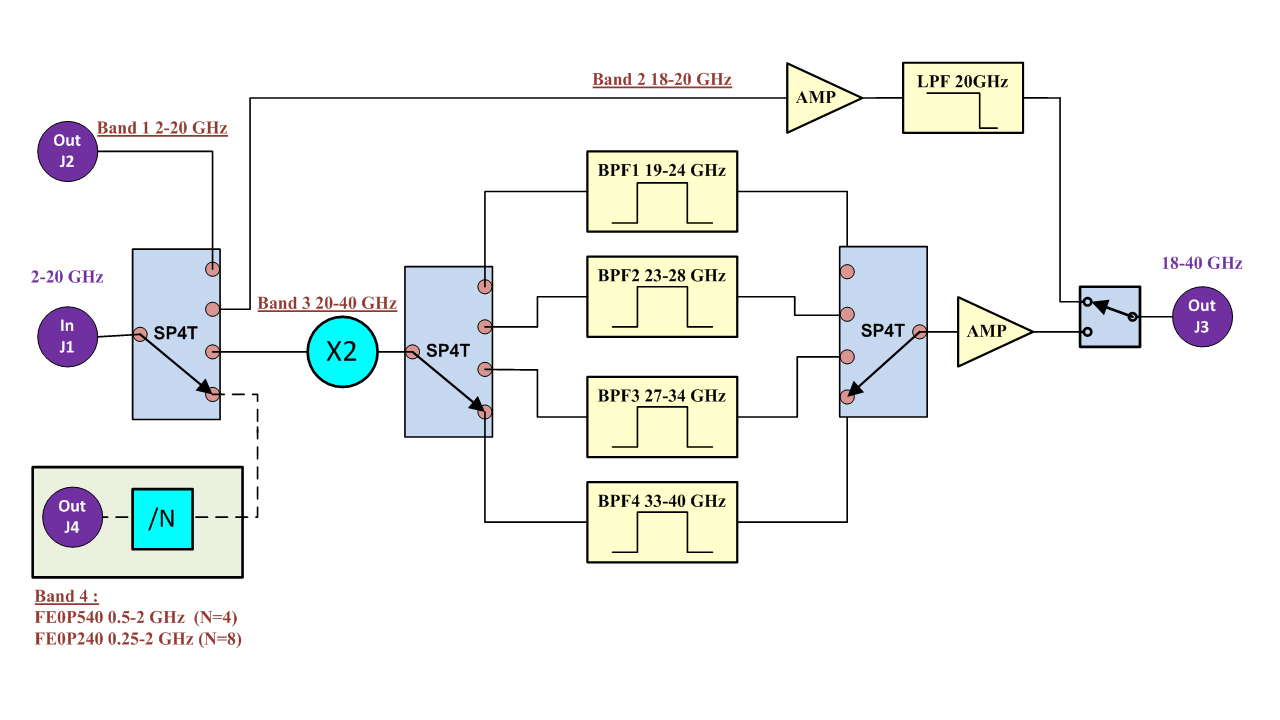

Series FE Frequency Extender



The series FE Frequency Extender has been designed to extend, at a low cost, the frequency range of the high performance Fast Indirect Synthesizers enabling operation from 0.5 to 40 GHz. The following product families may be used as an input source for the FE Frequency Extender: SW0120, SF6219, SM6220, D6218. The SM6220 synthesizer is capable of wideband frequency modulation with a span of 1 GHz. The FE Frequency Extender is supporting this capability through millimeter wave. The result of combining the SM6220 with the FE is a wideband synthesizer capable of wideband frequency modulation with a span of 1 GHz up to 40 GHz. For military applications, this product requires option G09 to comply with Military Standards. The specific environmental MIL STD requirements as well as the EMI/RFI specifications should be provided by the customer.
  • Input Frequency within 2 to 20 GHz
  • Output Frequency 2 to 40 GHz
    • Optional 0.5 to 40 GHz
    • Optional 0.5 to 20 GHz
  • Low Cost
  • Airborne
  • Compact Size
Series SWE Frequency Extender
Model FE0240 Frequency Extender
 Parameter SPECIFICATION
Model
 FE0P540  FE0240  FE0P520  FE0P240
 1  INPUT FREQUENCY RANGE (GHz)
 2 to 20
 2 to 20
 2 to 20 2 to 20
 2  OUTPUT FREQUENCY RANGE (GHz)
 0.5 to 40
 2 to 40
 0.5 to 20   0.25 to 40
 2.1        J2
 2 to 20
 2 to 20
 2 to 20 2 to 20
 2.2       J3
 18 to 40
 18 to 40
 N A 18 to 40
 2.3       J4
 0.5 to 2
 N/A
 0.5 to 2 0.25 to 2
 3  INPUT POWER (dBm)  +8 to +12  +8 to +12  +8 to +12 +8 to +12
 4  OUTPUT POWER (dBm)
 4.1       2.0 to 20 GHz @ J2 min.
 =(Input Power - 4dB)

 4.2       18 to 40 GHz  @ J3 typ.
 +10 to +15  +10 to +15  N A
 4.3       0.5 to 2 GHz @ J4 typ.
 0
 N/A  0  0
 5  INPUT VSWR, max.  2.0:1  2.0:1  2.0:1  2.0:1
 6  OUTPUT VSWR
 6.1       0.5 to 2 GHz @ J4 max.  2.0:1  N/A  2.0:1  2.0:1
 6.2       2 to 20 GHz @ J2 max.  2.0:1  2.0:1  2.0:1  2.0:1
 6.3      18 to 40 GHz @ J3 max.
 2.5:1  2.5:1  N A  2.5:1
 7  2nd HARMONICS & SPURIOUS (dBc)

 7.1       2.0 to 20 GHz, min.
 -50  -50
 -50  -50
 7.2       18 to 40 GHz, min.
 -50  -50  N A  -50
 8 SWITCHING TIME, max (nSec)
250
 250
 250  250
 9  POWER SUPPLY (A)

 9.1       12 to 15 VDC, max.
 1.5  1.5
 0.85  1.5
 9.2       -12 to -15 VDC, max.
 0.25  0.25
 0.25  0.25
 10 FILTER OVERLAP, min. (GHz)
 1  1
 N A  1
 11  FILTER CONTROL, TTL, Logic 1, BITS  7  7
 N A  7
 12  OPERATING TEMPERATURE, (°C)  -40 to +85
 13  AIRBORNE ENVIRONMENT (OPTION G09)
 Yes  Yes
 YES  YES
 14  LASER SEALING  Yes  Yes
 YES  YES
 15  RF CONNECTORS
 15.1        J1, J2, J4  SMA FEMALE
 15.2        J3 OUTPUT  K FEMALE  K FEMALE  N A  K FEMALE
 16  CONTROL CONNECTOR  MDM 15 PINS
 17  DIMENSIONS, (mm)  76.2 x 76.2 x 20.32
 17.1  DIMENSIONS, (Inches)  3.0 x 3.0 x 0.8

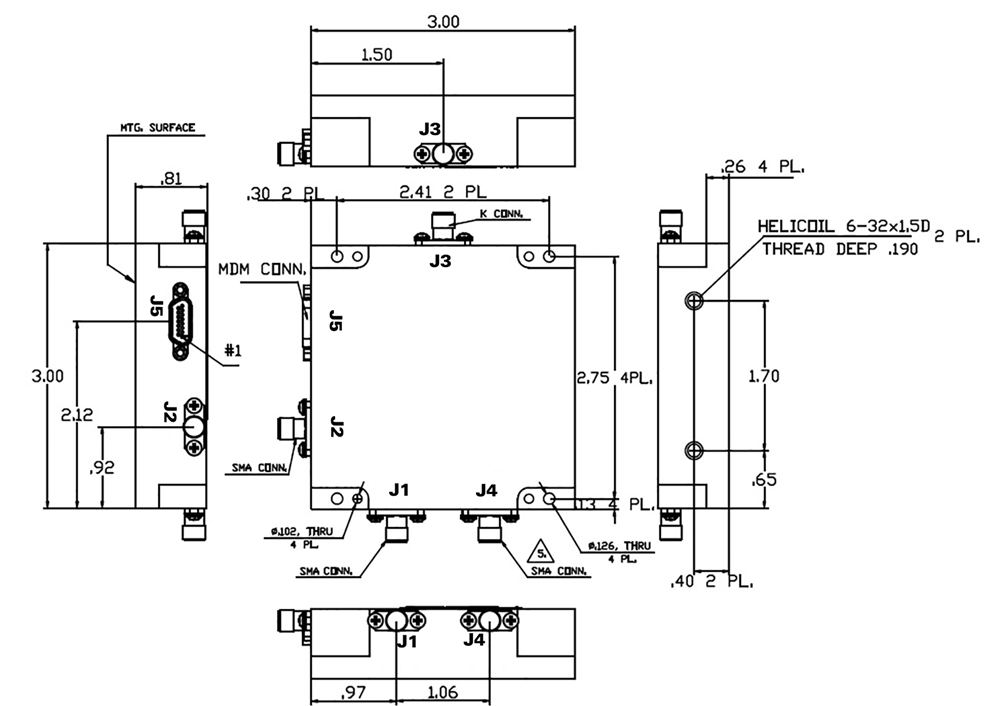

DIMENSIONS AND WEIGHT



PINOUT
 J5 PIN No.   FUNCTION
   1    +12V
   2    +12V
   3    GND
   4    SO
   5    S1
   6    S2
   7    N/C
   8    GND
   9    -12V
   10    GND
   11    N/C
   12    GND
   13    N/C
   14    N/C
   15    GND
LOGIC TABLE
S0 S1 S2
Shut-Down Mode 0 0 0
2-20GHz (J2) 0 0 1
18-20GHz (J3) 0 1 0

19-24GHz (J3)

0 1 1
23-28GHz (J3) 1 0 0

27-34GHz (J3)

1 0 1

33-40GHz (J3)

1 1 0

0.5-2GHz (J4)

1 1 1
NOTES
TTL Logic Levels:

"0" - -0.3 to +0.8V
"1" - +2 to +5V

CONTROL COMMAND

• Switch control logic signal shall be 3 line binary coded TTL logic, as described in the logic table.

• Shut-Down Mode - the unit is set to J4 and there is no current to the frequency divider.


Weight approx.  200 gr.  (7 Oz)

Dimensions are stated in inches (mm).  Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008





The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
