Kratos General Microwave has delivered a large number of custom synthesizers for various applications. Most of these custom synthesizers were for airborne Electronic Warfare systems. Following is a sample of custom synthesizers we delivered to our customers.

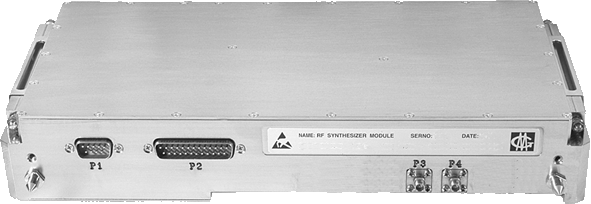

VME CONTROLLED SYNTHESIZER
FEATURES
- Wide Frequency Range
- Fast Settling Time
- Low Power Consumption
- VME mechanical and control Interface

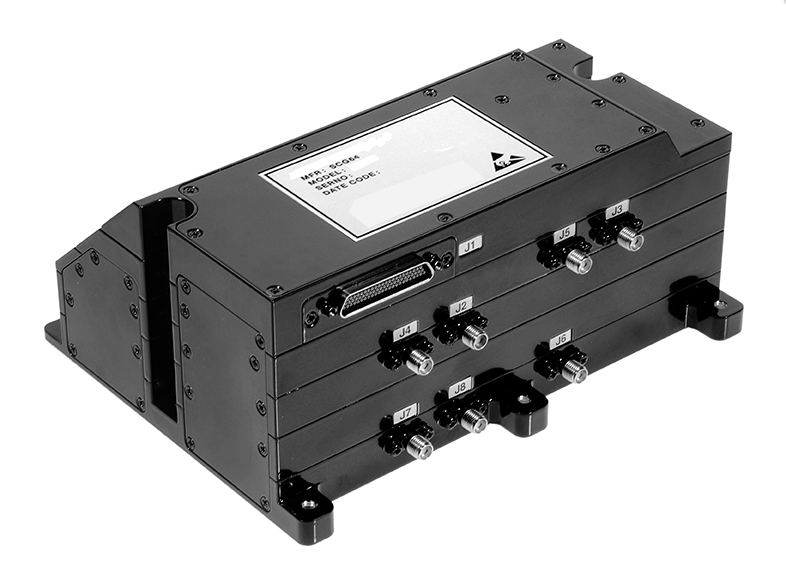

DIRECT SYNTHESIZER
FEATURES
- Broad Frequency Range
- Settling Time: 40 nsec.
- Phase Noise
- @ 1 kHz: -91 dBc/Hz
- @ 100 kHz: -114 dBc/Hz
- @ 1 MHz: -116 dBc/Hz
- Coherency Guaranteed

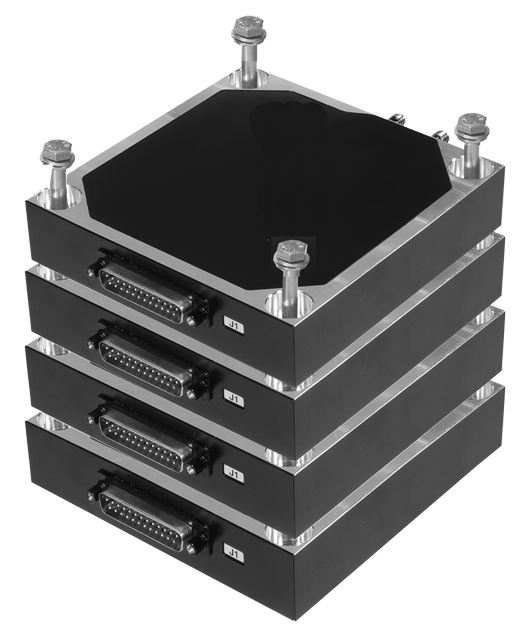

BANK OF SYNTHESIZERS
FEATURES
- Low Spurious
- Wide Frequency Range
- High Reliability
SYNTHESIZER - FORM FIT REPLACEMENT
FEATURES
- Low Spurious
- Wide Frequency Range
- High Reliability
- Replacement for YIG
